29.2 Automated Migration to VMware Using Migrate Client

  1. In the Migrate Client, if the VMware target you need is not yet configured, click Add Targets, then configure the target VMware platform.

    See Target Discovery in the Migrate Client.

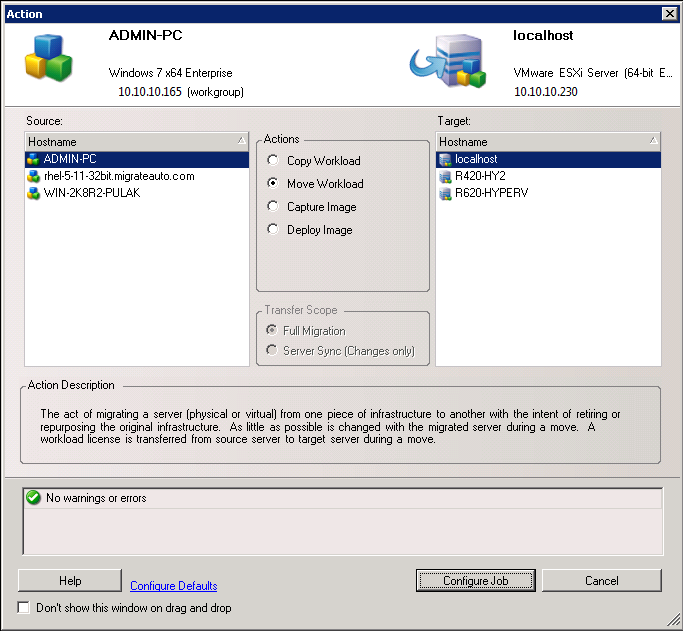

  2. In the Migrate Client, initiate a peer-to-peer workload migration.

    1. Expand the Tasks options, then select the conversion type, depending on your goals for the migration:

      • Copy Workload

      • Move Workload

      The Source and Target panes display workloads and targets applicable to the selected type of a migration job.

    2. In the Source pane, select the workload you want to migrate.

    3. In the Target pane, select target VMware platform for the migration.

    4. Check the validation messages at the bottom of the window.

    5. Click Configure Job to access the Peer-to-Peer Migration Job window.

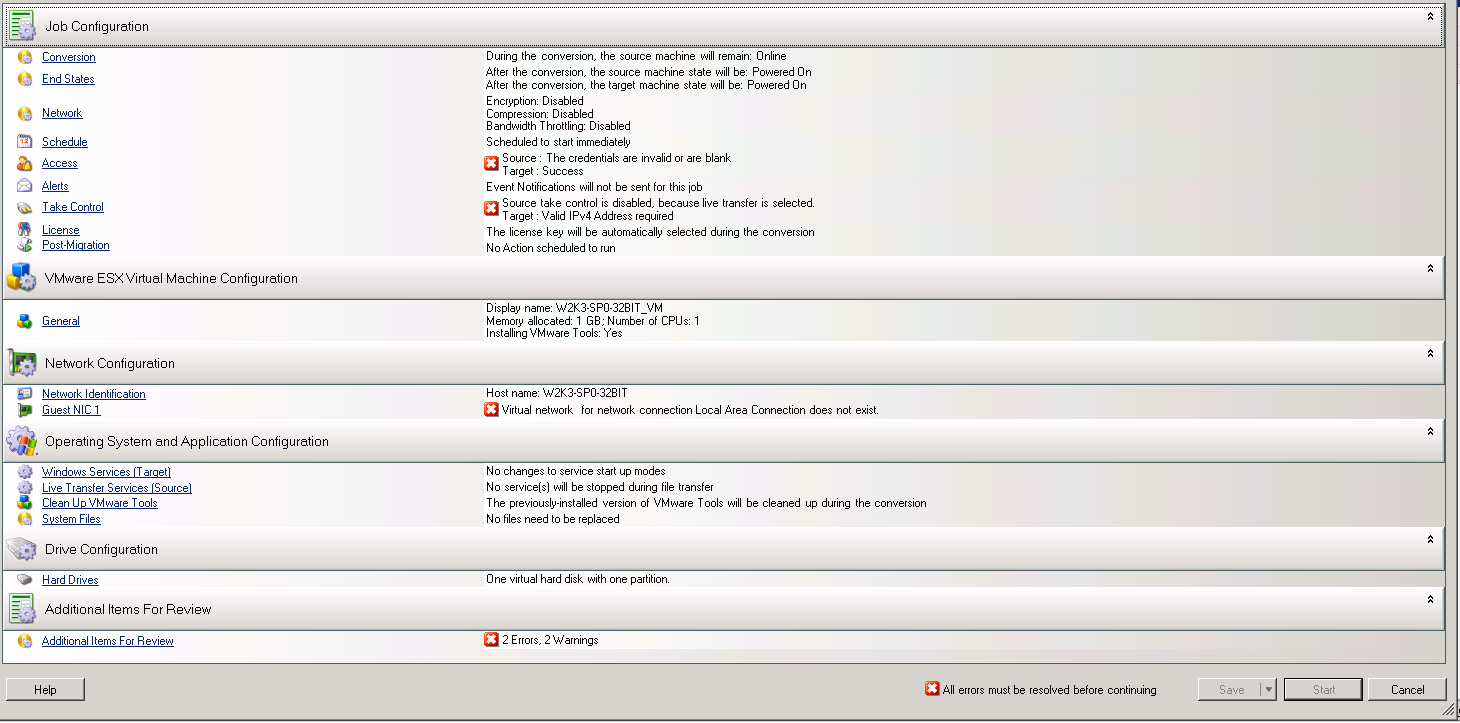

      Figure 29-1 Peer-to-Peer Migration Job Window

  3. In the Job Configuration section of the Migration Job window, configure the following settings:

    Setting Name

    Description

    License

    License Key

    PlateSpin Migrate automatically selects the best license key for a migration job. If you have multiple license keys, you can specify the license key to use for the workload, assuming licenses are available (neither expired nor exhausted).

    To specify an alternate key to use:

    1. Deselect Automatically select the best license key during the conversion, then select the appropriate license key from the menu.

    2. Click OK.

      The selected license key is displayed on the License tab and its description is updated.

    Conversion

    Transfer Scope

    Specify the scope of workload data to transfer from the source to the target as Full Migration or Server Sync (Changes Only).

    Transfer Method

    Specify how data is transferred from source to target. The availability depends on your workload and migration job type.See Supported Data Transfer Methods.

    End State

    Source Machine End State

    Specify whether to shut down the source workload after a successful cutover. For a workload move, the shut down is selected by default.

    Target Virtual Machine End State

    Specify whether to power on, power off, or suspend the target workload after a successful cutover.

    Network

    Compression

    Specify whether to compress data during transmission between the source and target workloads, and the level of data compression to apply.See Data Compression. Select one of the following options:

    • Fast: Consumes the least CPU resources on the source, but yields a lower compression ratio.

    • Optimal: Consumes optimal CPU resources on the source and yields an optimal compression ratio. This is the recommended option.

    • Maximum: Consumes the most CPU resources on the source, but yields a higher compression ratio.

    Encryption

    Select Encrypt Data Transfer to encrypt the data as it is transferred from source to target.See Security and Privacy.

    Bandwidth Throttling

    Specify whether to throttle bandwidth for data transfer traffic between the source and target machines. To enable throttling, select the Enable Bandwidth Throttling option, specify the required maximum value in Mbps, and optionally a time period during which to enforce the throttling. If specified, the from and to time values are based on the source workload’s system time.

    If no time interval is defined, bandwidth is throttled to the specified rate at all times by default. If time interval is defined and the migration job executes outside this interval, data is transferred at full speed.

    IP Addresses

    Specify additional IP addresses for source workloads to enable communication in environments that use network address translation (NAT).

    For information on how to specify additional IP addresses for your PlateSpin Server, see Migrations Across Public and Private Networks through NAT.

    Schedule

    Schedule

    Specify when to start the migration job:

    • Run immediately

    • Run at a later time

      Use the calendar menu to specify the date and time to begin the migration.

    NOTE:You must prepare the workload prior to the scheduled time.The full replication cannot run unless the target VM exists and the workload preparation is complete. Migrate skips the scheduled full replication and retries it at the next scheduled time.

    Access Settings

    Source Credentials

    (Windows) Specify the account user name with local or domain-level administrative privileges and a valid password. Use this format:

    • For domain member machines: authority\principal

    • For workgroup member machines: hostname\principal

    (Linux) Specify the root or root-level user name and a valid password.

    Target Credentials

    (VMware DRS Cluster) Specify VMware vCenter Web service user name and password.

    (VMware ESX Server) Specify the ESX account with administrator role.

    Alerts

    Receive Event Notifications

    Specify whether to send email notifications for event conditions. You must configure an SMTP server to use this feature.

    Receive Progress Notifications

    If you enable Event notifications, you can optionally receive progress notifications at a specified interval.

    Send to Addresses

    Add or remove valid email addresses for recipients of the notifications.

    Take Control Settings

    Target Virtual Machine

    Under Target Virtual Machine, click Configure, then specify the options for the virtual network and the TCP/IP settings for the replication NIC, then click OK.

    Post-Migration

    Action

    Specify a previously configured custom action that you want to execute on your target workload as a part of the migration job. See Managing Post-Migration Actions.

    Execution Parameters

    Specify the command line command to run the selected action. You can specify a timeout for the execution.

    Credentials

    Specify the user name and password to use for the post-migration tasks. You can optionally use the source credentials.

  4. In the Virtual Machine Configuration section of the Migration Job window, click General, then configure the following settings:

    Setting Name

    Description

    VMware ESX Virtual Machine

    Virtual Machine Name

    Specify a name to use for the target VM as it appears in the VMware.

    Datastore

    Select a datastore associated with your VM for storing VM configuration files.

    Path

    Type the path to use for the target VM file, including the VM file name. For example:

    /hostname/hostname.vmx

    Virtual Machine Memory Allocation

    Specify the amount of virtual memory in GB.

    Install VMware Tools

    Specify whether to install the latest VMware tools on the target VM. If they are installed on the source, they will be uninstalled and reinstalled using the version appropriate for the platform of the VMware target host.

    Virtual Devices

    Specify preferences for the virtual devices.

    Advanced

    (For expert users) Specify preferences for the Resource Pool, number of CPUs, and CPU scheduling affinity based on their availability on the target VMware server. Each vCPU is presented to the guest OS on the VM platform as a single core, single socket.

    (For migration to VM platform that is part of a DRS Cluster) Specify the Resource Pool location where the migrated VM is to be created.

    PlateSpin Migrate displays target virtual machine configuration options specific to the selected target and also provides access to advanced configuration options. For information about host-specific configuration options, see Target VM Configuration: VMware ESXi.

  5. In the Network Configuration section of the Migration Job window, configure the following settings:

    Setting Name

    Description

    Network Configuration

    Network Identification Settings for Windows

    Host Name

    Specify the desired host name for the target machine.

    Member of Domain / Workgroup

    Select the required option and type the name of the domain or workgroup that you want the target machine to join.

    Preserve Source Server’s Domain Registration

    Preserves domain registration and ensures that the source server domain registration remains intact during migration. If you disable this option, the source machine’s domain account is transferred to the target machine. The source server still appears to be on the domain, but does not have a valid connection.

    Domain Credentials

    If the target machine is to be part of a domain, specify valid credentials for a user account with permission to add servers to the domain, such as a member of the Domain Admins group or Enterprise Admins group.

    Network Identification Settings for Linux

    Host Name

    On the Network Identification tab, specify the desired host name for the target machine.

    DNS

    Use the Add, Edit, and Remove buttons to manage DNS server entries for the new virtual machine.

  6. In the Operating System and Applications Configuration section of the Migration Job window, configure the following settings:

    Setting Name

    Description

    Operating System and Application Configuration

    Windows Services (Target)

    Select Windows services’ start conditions on the target VM after cutover. Start options are Automatic, Manual, Disabled, and Automatic (Delayed Start).

    To modify the settings:

    1. Click the Status column for the service, then select from the Windows start options.

    2. When you are done setting services start states, click OK.

    Live Transfer Services (Source)

    Specify the Windows services to stop on the source workload during data transfers.

    We recommend that all the non-VSS compliant services or antivirus are stopped temporarily on the source while the VSS snapshot is being captured on the source. Select the Windows services that you want to be temporarily stopped on the source workload while the VSS snapshot is being captured on the source. These services are restored as soon as the VSS snapshot creation completes.

    To modify the settings:

    1. Select Stopped next to the service to be stopped for data transfer.

    2. When you are done setting services to stop, click OK.

    Linux Daemons (Target)

    Specify the start states for daemons on the target VM after cutover.

    To modify the settings:

    1. Click the Run Level column for the daemon, then select from run levels 0 through 6 and Boot (B), then click OK.

    2. When you are done setting daemon start states, click OK.

    Live Transfer Daemons (Source)

    Specify the daemons to stop on the source workload during data transfers.

    To modify the settings:

    1. Select Stopped next to the daemon to be stopped for data transfer.

    2. When you are done setting daemons to stop, click OK.

  7. In the Drive Configuration section of the Migration Job window, configure the following settings:

    Setting Name

    Description

    Drive Configuration

    Hard Drives

    Specify drive and volume configurations to be migrated.

    Disks

    Specify the path to the hard disk on the target virtual machine.

    Volumes

    Select volumes to be included in the target for migration.

    NTFS Cluster Size

    (For File-Based Windows Workloads) Specify the cluster size for the NTFS volume. For information about the default cluster size for an NTFS volume, see the Microsoft Support KB Article 140365.

    Non-volume Storage

    (For Linux Workloads) Specify a non-volume storage, such as a swap partition, that is associated with the source workload. This storage is re-created in the migrated workload.

    Disks For Volume Groups

    (For Linux Workloads) Specify the datastore name and the path where the virtual disk must be created on the target machine. You can choose to retain the path specified by default.

    Volume Groups

    (For Linux Workloads) Specify the LVM volume groups to be migrated with the LVM logical volumes listed in the Converted Logical Volumes section of the settings.

    Converted Logical Volumes

    (For Linux Workloads) Specify one or more LVM logical volumes to be migrated for a Linux workload.

    PlateSpin Migrate displays storage configuration options specific to the selected target. For information about host-specific configuration options, see:

  8. In the Additional Items for Review section of the Migration Job window, review errors and messages about the workload configuration. You must resolve errors before you can submit the migration job.

  9. Click OK.

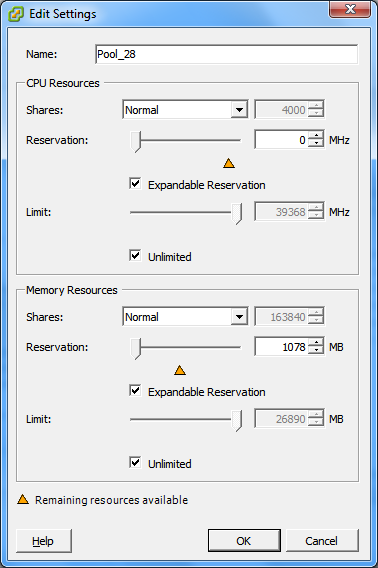

29.2.1 Target VM Configuration: VMware ESXi

The following are configuration options specific to VMware vSphere (applicable to all VMs under the containing resource pool).

Name: Specify the display name for the new virtual machine.

CPU Resources

  • Shares: CPU shares for this virtual machine with respect to the parent’s total. Peer VMs share resources according to their relative share values bounded by the Reservation and Limit. Select Low, Normal, or High, which specify share values respectively in a 1:2:4 ratio. Select Custom to give each virtual machine a specific number of shares, which express a proportional weight.

  • Reservation: Guaranteed CPU allocation for this VM.

    Expandable Reservation: Select this option to specify that more than the specified reservation is allocated if resources are available in a parent.

  • Limit: Upper limit for this virtual machine’s CPU allocation.

    Unlimited: Select this option to specify no upper limit.

Memory Resources: (these are similar to CPU resource settings, but apply to memory resources)

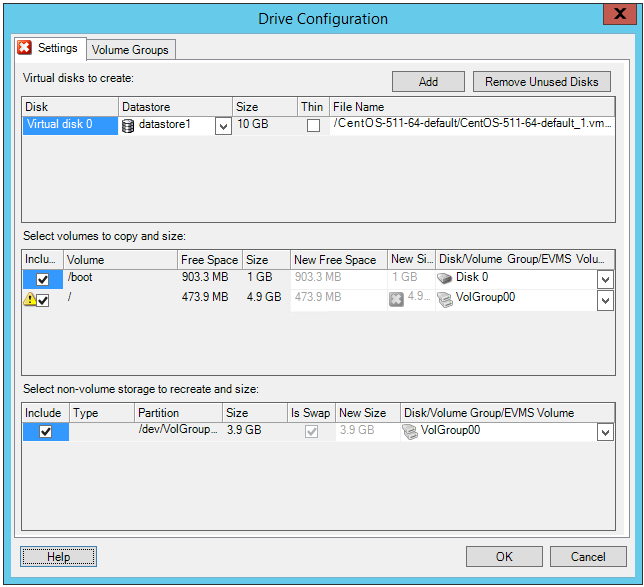

29.2.2 Drive Configuration: VMware ESX

The following are drive configuration settings specific to VMware ESX:

Datastore: Select the datastore volume on the ESX server where you want to place the vmdk files.

Copy: Select the volumes to be copied during the migration.

New Free Space: To resize the volume during the migration, specify the desired amount of free space. PlateSpin Migrate automatically adjusts New Size.

New Size: To resize the volume during the migration, specify the desired size. PlateSpin Migrate automatically adjusts New Free Space.

Disk/Volume Group: Assign the volume to a disk or, if LVM is enabled, to a volume group. The volume will be copied to this disk or volume group on the target machine.

Create: Select any non-volume disk partitions that should be created on the target machine (for example, a Linux swap partition).

New Size: To resize the non-volume partition during the migration, specify the desired size.
