You can create an element filter from the context menu using the relationships of an element type to the filter type. The Filter dialog box modeled in the filter type is automatically opened. This pre-assigns appropriate input fields of the filter criteria with the element's property values.
| Attribute
|
Type
|
Description
|
| TargetID *
|
FilterType
|
The filter type that should be referenced using this relationship.
A Filter dialog box of this type is opened when you create a filter via the referenced element type.
|
| Label [O]
|
String
|
Label in the context menu for creating a new filter.
|
| SeqNo
|
Integer
|
The position of the entry in the context menu of the element. Filter action are always positioned before other element actions.
|
| Show_In_Table_View
|
Boolean
|
Determines whether the Create Filter action should display in the
Table Results view context menu.
|
| Show_In_Tree_View
|
Boolean
|
Determines whether the Create Filter action should display in the
Application Explorer view context menu.
|
Example

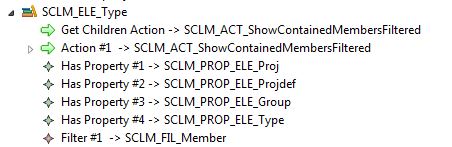

In the standard SCLM model, an element filter is defined for the element type "SCLM Type". It is the filter type SCLM_FIL_Member which is also used as a stand-alone filter type.
When used from the context menu in the
Application Explorer view the filter dialog is populated with the properties available from the context.
