This relationship can be used to define decorations which should appear in front and/or behind of the label defined for the element type.
It is possible to define several text decorations for an element type. Within the relationship, the following attributes can be specified:
- Position of the decorator.
- Leading and trailing characters for the decorator.
- Separator if more than one decorator is used.
A text decoration can reference an arbitrary count of properties or static values. It is possible to provide enabled conditions for the referenced properties or static values, for example, to tell which static value should be shown in the decoration if the respective boolean property has the value true or false.
Note: Some
Linked Element Types enable the label decoration to be automatically determined. This functionality is only applied if no
Element Has Text Decoration is modeled.
| Attribute
|
Type
|
Description
|
| Seq No *
|
Integer
|
The position of the text decoration within all text decorations in front or behind the label.
|
| Text Decoration Position *
|
Selection
|
Valid values are: "Behind the Label" or "In Front of the Label"
Defines whether the text decoration should be placed behind or in front of the label.
Default: "Behind the Label"
|
| Start Character [O]
|
String
|
Defines fixed character(s) with which the text decoration starts.
Default: " ("
|
| End Character [O]
|
String
|
Defines fixed character(s) with which the text decoration ends.
Default: ")"
|
| Separator [O]
|
String
|
Defines the separator between decoration values if more than one decoration value is modeled.
Default : " - "
|
| Relationship
|
Cardinality
|
Description
|
| Text Decoration_Has_Decoration Value
|
0..*
|
Relationship from a text decoration to a static value or a property
|
Example

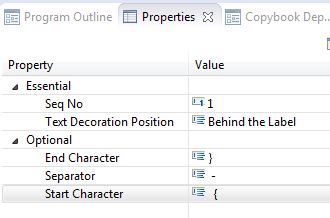

The following text decoration is defined in the standard SCLM model for SCLM elements in the
Application Explorer view.

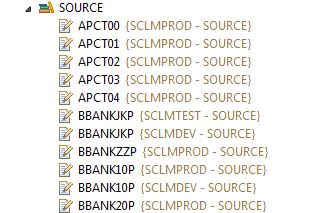

The following figure illustrates how the text decoration is represented in the
Application Explorer view:
