3.2 Configuring Citrix Load Balancing
A single sign-on operation implemented for memory optimization might result in client connection dropouts. However, this does not have any adverse impact on your Citrix server, and you can resolve this by configuring Citrix Load Evaluators to increase the number of allowed page faults.
3.2.1 Creating a New Load Evaluator
-

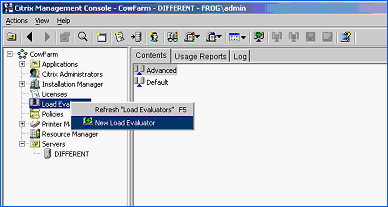

Start the Citrix management console, then select .
-

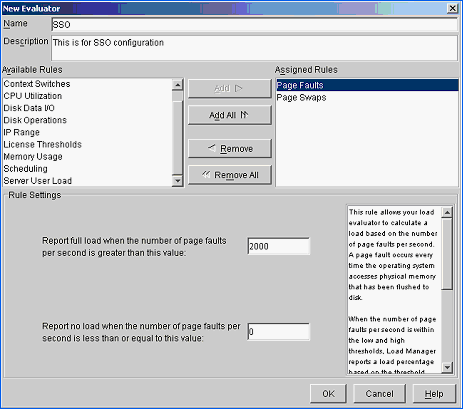

Right-click and select . The New Evaluator dialog box is displayed.
-
Specify a name for the , and a description for the new evaluator.
-
From the list, select and , then click .
-
From the lists, select .
The page default settings are configured in the rule setting section, which is displayed in the bottom half of the New Evaluator dialog box.
-
Specify a value in the field when the number of page faults per second is greater than this value field.
-
Specify a value in the field when the number of page faults per second if less than or equal to this value field.
-
From the list, select to display page swap settings in the rule settings section.
-
Specify a value in the field when the number of page swaps per second is greater than this value field.
-
Specify a value in the field when the number of page swaps per second is less than or equal to this value field.
-
Click .
The required Load Evaluators are configured and are loaded to the Citrix server on which SecureLogin is installed.
3.2.2 Loading New Load Evaluators to the Citrix Server
-

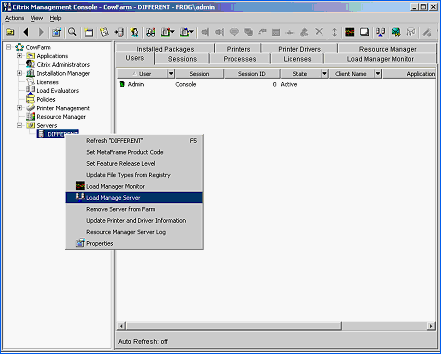

From the Citrix management console, select > .
-

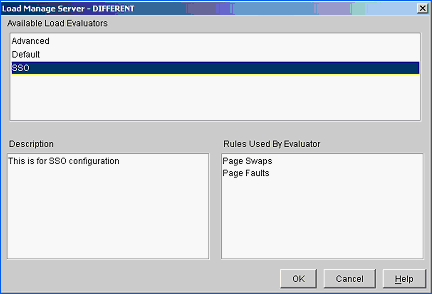

Right-click the relevant Citrix server name, then select . The Load Manage Server - <server name> is displayed.
-
From the list box, select . Click .
The new Load Evaluators are loaded to the Citrix server.
