14.1 Deployment for Migration to Microsoft Hyper-V
Figure 14-1 shows the location of various components in your automated Hyper-V migration environment and the communications between them.
NOTE:Figure 14-1 and Figure 14-2 depict automated discovery and the network requirements for Windows and Linux workloads. You can alternatively use Migrate Agent on the source workload to register the workload and send its inventory details to PlateSpin Migrate server using HTTPS (TCP/443). See Requirements for Workload Registration and Registering Workloads and Discovering Details with Migrate Agent.

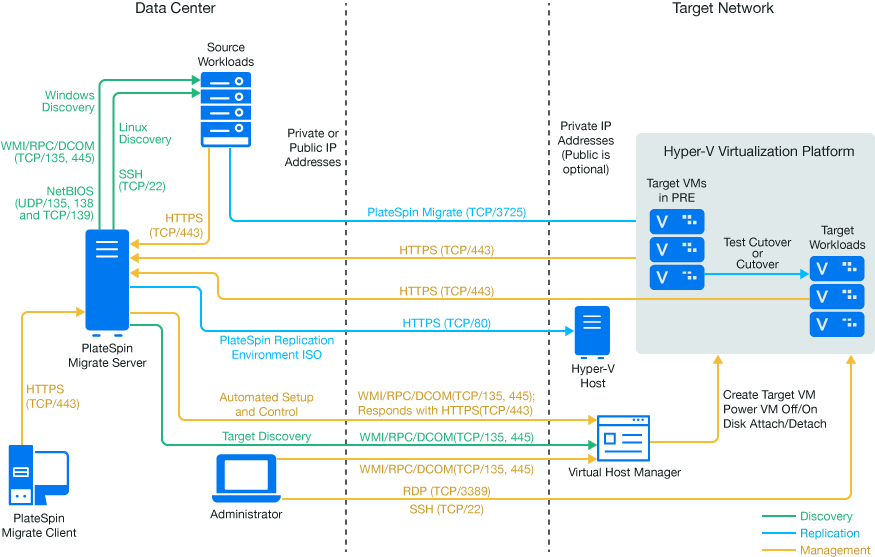

Figure 14-1 Automated Migration to Hyper-V
Figure 14-2 shows the location of various components in your semi-automated Hyper-V migration environment and the communications between them.
Figure 14-2 Semi-Automated Migration to VMs on Hyper-V
