4.3 Minimum System Requirements
Business Continuity Clustering supports up to four peer clusters that are running OES 2023 and Novell Cluster Services.
The BCC operating environment requires the versions of OES and NetIQ products listed in Table 4-1, with the latest patches applied.
Table 4-1 BCC Operating Environment
|
Supported Product |
For documentation, see: |
|---|---|
|
eDirectory 9.2.7 This product is included with OES 2023. |
eDirectory 9.2.7 documentation Web site on NetIQ.com |
|
Open Enterprise Server 2023 |
OES 2023 documentation Web site on MicroFocus.com |
|
Novell Cluster Services |
For information about clustering OES 2023 services and storage, see the product documentation on the OES 2023: OES Cluster Services for Linux Administration Guide |
|
iManager 3.2.6 This product is included with OES 2023. |
iManager 3.2.6 documentation Web site on NetIQ.com |
|
Clusters plug-in for iManager This product is included with OES 2023. |
|
|
Identity Manager 4.8.6 The credential to activate IDM is included in the BCC license. |
IIdentity_Manager_4.8.6 documentation Web site on NetIQ.com |
Fully configured and tested peer clusters are the most important requirement for BCC. Figure 4-1 shows a business continuity cluster with two peer clusters. It illustrates where the required products are installed. The figure uses the following abbreviations:
- BCC: Business Continuity Clustering for OES 2023
- eDir: eDirectory 9.2.7
- OES Linux: Open Enterprise Server 2023
- NCS: Novell Cluster Services for Linux
- iManager: iManager 3.2.6
- IDM: Identity_Manager_4.8.6

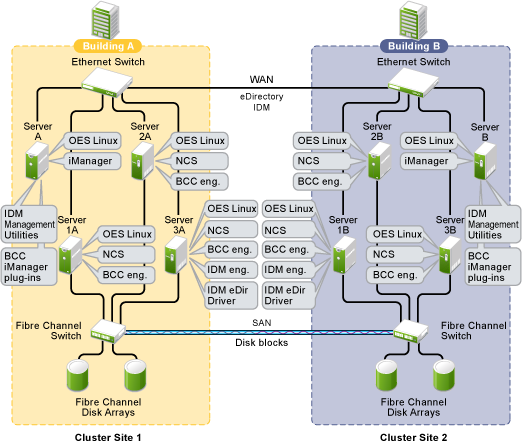

Figure 4-1 Business Continuity Cluster Component Locations
