D.3 Configuring the Cluster Resources for Dynamic DNS

After the DNS server is configured for dynamic DNS, you must configure each of the BCC-enabled cluster resources to take advantage of it. You modify the BCC load scripts for each of the cluster resources so that the script automatically updates the DNS server with the correct IP address of the given resource during a BCC migration to a peer cluster.

IMPORTANT:In each of the peer clusters, the keys and the BCC load script for each resource will differ. You assign the resource an IP address that is consistent with the subnet into which the BCC-enabled cluster resource is being migrated or failed over. This allows the DNS server to be updated when the resource fails over from the primary cluster to the secondary cluster. The same thing needs to be done on the primary cluster so the DNS server is automatically updated on failback from the secondary cluster to the primary cluster. You must perform these steps for every BCC-enabled resource in the business continuity cluster.

The BCC load and unload scripts for BCC-enabled cluster resources are used to automate any tasks that need to occur when the resource is failed over to a peer cluster. For example, during a BCC migration, the BCC scripts manage the storage and update eDirectory. The BCC scripts are based on Perl, which means that you need to create Perl-based wrappers for the nsupdate utility commands before placing them in the BCC load script. Typically, the line for the nsupdate utility would be the last command to run in the script, but this might not be true for all environments.

D.3.1 Modifying the BCC Load Script

Open iManager, then log in as the BCC Administrator user.
In Roles and Tasks, select Clusters > My Clusters, then click the cluster name of the secondary peer cluster for the resource. (That is, choose a peer cluster where the resource is not currently assigned and running.)
Click the Cluster Options tab.
Click the name link of the BCC-enabled resource where you want to add dynamic DNS support.

This opens the Properties page for the selected resource.

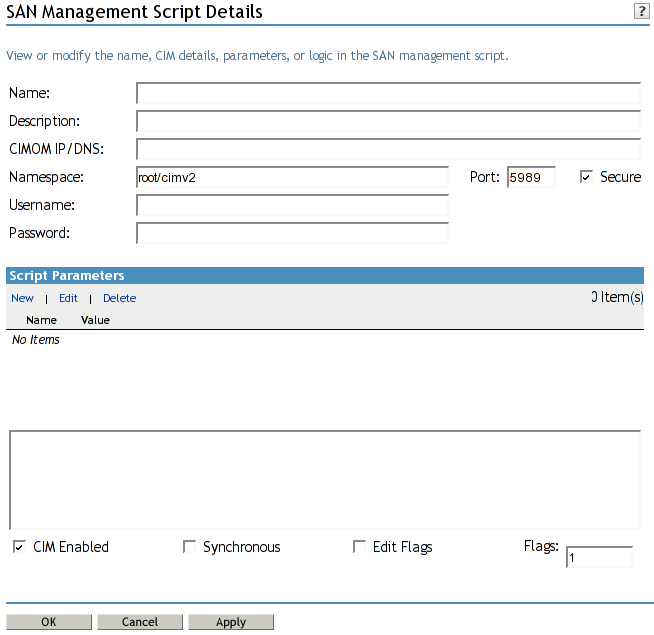

Select the Business Continuity tab, click SAN Management, then click New in the BCC Load Script table.

Specify the following settings for the script:

Parameter	Description
CIM-Enabled	Used for CIM (Common Information Model) and SMI-S (Storage Management Initiative Specification) enabled scripts that manage a physical SAN. These are not used for the dynamic DNS script. Deselect the check box. After this check box is deselected, the CIMON IP/DNS, Namespace, Port, Secure, User name, and Password controls are all disabled.
Name	Specify the name of the script that is shown in the BCC log files (such as in /var/log/messages). The name should give enough information that the entries in the log file are meaningful. For example, a name of Dynamic DNS Update – Resource Test1 identifies what the script does and which resource it is acting upon.
Description	Specify information that helps you understand the nature of the script. This information is not displayed in any of the BCC log files.
CIMOM IP/DNS	This field is used by CIM or SMI-S enabled scripts. It is not needed for the dynamic DNS script.
Namespace	This field is used by CIM or SMI-S enabled scripts. It is not needed for the dynamic DNS script.
Port	This field is used by CIM or SMI-S enabled scripts. It is not needed for the dynamic DNS script.
Secure	This field is used by CIM or SMI-S enabled scripts. It s not needed for the dynamic DNS script.
User name	This field is used by CIM or SMI-S enabled scripts. It is not needed for the dynamic DNS script.
Password	This field is used by CIM or SMI-S enabled scripts. It is not needed for the dynamic DNS script.
Script Parameters	The script parameters are used to customize the dynamic DNS script to work with a particular DNS server. Go to Step 7 to enter the parameters.
Script	Copy and paste the dynamic DNS script into this edit box.
Synchronous	When enabled (selected), this option synchronizes the execution of multiple BCC load and unload scripts. This is not necessary for the dynamic DNS script, so leave it disabled (deselected).
Edit Flags	This is an advanced option that should only be enabled when instructed to do so by Micro Focus Support. Leave it disabled (deselected).

Specify the Script Parameters.

Click New to insert a new editable row into the Script Parameters table.
Add the parameter name and value.

The left field is the parameter name and the right field is the parameter value.
When you are done adding a name/value pair, click OK to save the parameter.

Repeat the process for each name/value pair.

The following are the name/value pairs that must be entered into the Script Parameters table for the dynamic DNS script:

Name	Sample Value	Description
DNS_SERVER_ADDR	10.1.1.172	Specify the IP address of the DNS master server.
HOST_NAME	cluspool1.clusters.site1.company.com	Specify the hostname of the cluster resource whose IP address needs to be updated when it is migrated to this peer cluster.
HOST_RECORD_TTL	60	Specify the time-to-live value of the DNS record in seconds.
HOST_IP	10.1.20.216	Specify the new IP address for the cluster resource in the subnet of this peer cluster.
KEY_FILE	/mnt/bcc-master/dyndns/keys/Kcluster1.clusters.sitel.company.com.+157+60303.private	Specify the location of the private key file. Remember that the public key must be in this same directory.

Click OK to return to the Cluster Resource Properties page for the resource you are modifying, then click OK again on the Cluster Resource Properties page to save the new dynamic DNS BCC load script.

D.3.2 Public and Private Keys

The BCC load and unload scripts always run on the node that is hosting the Novell Cluster Services master resource (that is, the Master_IP_Address_Resource). This resource can be hosted on any node in the Novell Cluster Services cluster, which means the BCC load and unload scripts can also be executed on any node in the cluster.

The Perl wrapper script for the nsupdate utility needs access to both the private and public keys created in Section D.2.1, Creating the TSIG Keys for DNS Server Authentication. The nsupdate utility needs access only to the private key. However, for historical reasons, the public key must be in the same location as the private key. The files that contain the keys must be available on all nodes in the cluster. This can be accomplished in either of the following ways:

Copy to the same location on each node in the cluster (not recommended). Although this is simple and relatively quick to do initially, it can create significant maintenance issues. If the keys ever change, they must be copied to all nodes in the cluster. Failure to copy the keys to all nodes in the cluster creates the potential for failure in the dynamic DNS update process. You must also remember to copy the keys to any nodes you add to the cluster at a later date.
Create a cluster resource that contains the keys (recommended). Create a shared volume using any standard journaled Linux POSIX file system, such as Ext3. Configure the cluster resource with the Resource Follows Master setting enabled on the Policies > Resource Behavior area on the Cluster Resource Properties page. This setting forces the given resource to always be hosted by the same node that is hosting the Novell Cluster Services master IP address resource. The keys can then be copied to the file system hosted by this resource, which makes them available to the same node that is hosting the Novell Cluster Services master resource, and to the BCC load and unload scripts. This option takes a bit more configuration time, but results in easier maintenance. If the keys change, they only need to be copied to the file system hosted by this resource. In addition, if a node is added to the cluster, the new node automatically has access to the keys if it ever becomes the Novell Cluster Services master.

Create a 10 MB shared volume with the Ext3 file system mounted at /mnt/bcc-master.

For example, name the resource bcc-master. Ensure that it is configured with the Resource Follows Master enabled.

For information about creating a shared Linux POSIX file system, see Configuring and Managing Cluster Resources for Shared LVM Volume Groups in the OES 2023: OES Cluster Services for Linux Administration Guide.
Create the /mnt/bcc-master/dyndns/keys directory on the shared volume.
Copy the public and private key files to the directory.
Ensure that the Linux POSIX permissions are set so that the root user is the only user who has access.

D.3.3 Testing the Perl Wrapper Script

The dynamic DNS script cannot be compiled directly by a Perl interpreter because it does not recognize the BCC variables on lines 61–66 of the script. It is a simple matter to test the dynamic DNS script by manually and temporarily replacing the variables with values.

Copy the script to the local file system on the Novell Cluster services master node (such as /tmp/bcc_dyn_dns.pl).
Open the copy of the script in a text editor, then modify the BCC variables by modifying lines 61 through 66 of the script.

The uppercase string surrounded by the percent character ( % ) is the BCC variable and should be replaced with the real value (such as %DNS_SERVER_ADDR%).

For example, lines 62–66 of the script could be modified like the following:
```
my $dns_server_addr  = "10.1.1.172";

my $host_name    = "ftp.clusters.sitel.company.com";

my $host_record_ttl  = "60";

my $host_ip      = "10.1.1.216";

my $key_file    = "/mnt/bcc/dyndns/keys/Kcluster1.clusters.site1.company.com.+157+60303.private";
```
Remember to replace the values with the actual values for your environment.
Test the solution by invoking the Perl interpreter on the script via the following command
```
perl -w /tmp/bcc_dyn_dns.pl
```
This executes the dynamic DNS script and modifies your DNS server. You can test the results as outlined in Section D.2.4, Testing the DNS Server.
