2.1 Getting and Preparing Filr Software

The process of getting and preparing Filr software is straightforward, as illustrated in the following sections.

For more information, see Downloading and Preparing the Filr Software, in the Filr: Installation, Deployment, and Upgrade Guide.

2.1.1 Hyper-V

Figure 2-1 Downloading and Preparing Micro Focus Appliances for Hyper-V

Letter	Details
	You can download the .zip archive files for the Hyper-V build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.
	Unzip the archive to expose the appliance system disk image. For more information, see Hyper-V, in the Filr: Installation, Deployment, and Upgrade Guide.
	The .vhd file is a Hyper-V disk image that contains all of the appliance’s system files. You connect to this file in Hyper-V Manager by selecting the Use an existing virtual hard disk option. Unlike VMware and Xen, no pre-configured settings file is supplied for the VM. Instead you specify the RAM, network card, additional disks, and so on as instructed in the Filr: Installation, Deployment, and Upgrade Guide.

Letter

Details

You can download the .zip archive files for the Hyper-V build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.

Unzip the archive to expose the appliance system disk image. For more information, see Hyper-V, in the Filr: Installation, Deployment, and Upgrade Guide.

The .vhd file is a Hyper-V disk image that contains all of the appliance’s system files.

You connect to this file in Hyper-V Manager by selecting the Use an existing virtual hard disk option.

Unlike VMware and Xen, no pre-configured settings file is supplied for the VM. Instead you specify the RAM, network card, additional disks, and so on as instructed in the Filr: Installation, Deployment, and Upgrade Guide.

2.1.2 VMware

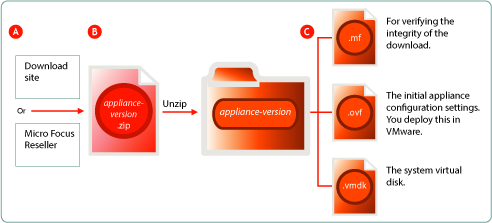

Figure 2-2 Downloading and Preparing Micro Focus Appliances for VMware

Letter	Details
	You can download the .zip archive files for the VMware build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.
	Unzip the archives to expose a folder that contains the three files needed for deployment. For more information, see VMWare, in the Filr: Installation, Deployment, and Upgrade Guide.
	The .mf file contains an SHA1 digest that VMware uses to verify the integrity of the other two files. The .ovf file contains the virtual appliance’s configuration settings. You open and deploy this file in VMware to create the Filr appliance. You modify its settings during the initial deployment phase. The .vmdk file is the virtual appliance’s (VA’s) system virtual disk and contains all VA system files. It comes ready for the initial start-up and configuration.

Letter

Details

You can download the .zip archive files for the VMware build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.

Unzip the archives to expose a folder that contains the three files needed for deployment. For more information, see VMWare, in the Filr: Installation, Deployment, and Upgrade Guide.

The .mf file contains an SHA1 digest that VMware uses to verify the integrity of the other two files.

The .ovf file contains the virtual appliance’s configuration settings. You open and deploy this file in VMware to create the Filr appliance. You modify its settings during the initial deployment phase.

The .vmdk file is the virtual appliance’s (VA’s) system virtual disk and contains all VA system files. It comes ready for the initial start-up and configuration.

2.1.3 Xen and Citrix Xen

Figure 2-3 Downloading and Preparing Micro Focus Appliances for Xen

Letter	Details
	You can download the .zip archive files for the Xen build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.
	Untar the archives to expose a folder that contains the two files needed for deployment. For more information, see Xen, and Citrix Xen, in the Filr: Installation, Deployment, and Upgrade Guide.
	The .raw file contains the system disk image. You open this file in Xen to begin the deployment process The .xenconfig file contains the virtual appliance’s configuration settings. You modify its settings during the initial deployment phase.

Letter

Details

You can download the .zip archive files for the Xen build of the three Micro Focus Filr appliances (Filr, Search, and PostgreSQL) directly from the Download Site, or you can obtain them through your Micro Focus Authorized Reseller.

Untar the archives to expose a folder that contains the two files needed for deployment. For more information, see Xen, and Citrix Xen, in the Filr: Installation, Deployment, and Upgrade Guide.

The .raw file contains the system disk image. You open this file in Xen to begin the deployment process

The .xenconfig file contains the virtual appliance’s configuration settings. You modify its settings during the initial deployment phase.
