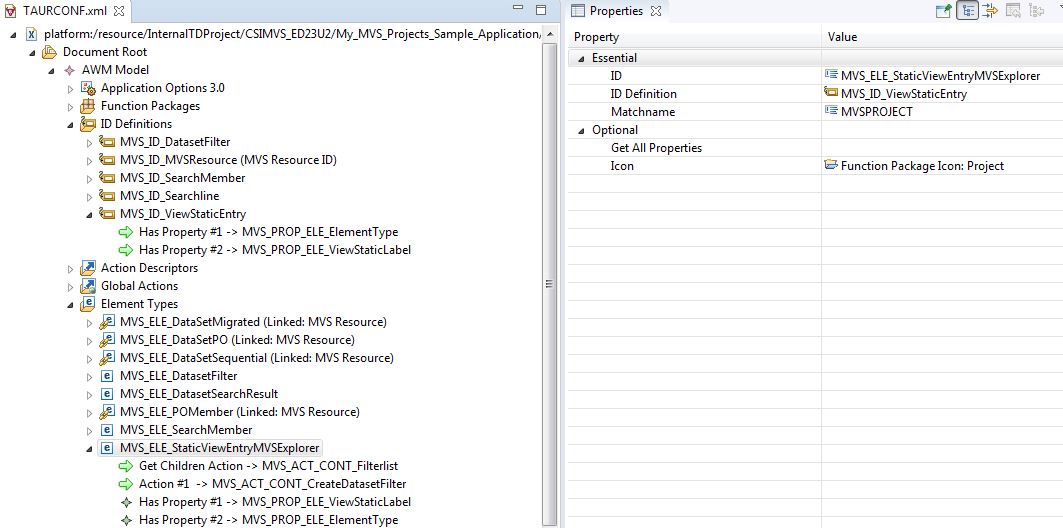

This element type has two properties and one action in the context menu, which is used to create a filter definition. The following image shows how to model this element type:
You need an ID definition to describe the property which uniquely identifies an element of this type.
The get children action has to be associated to be able to expand the static element in the tree view.
In addition, a project icon has been associated.
The match name MVSPROJECT must match the name used in the tool definition, which creates this static element:
At run time, this modeled static element is display in the tree view:

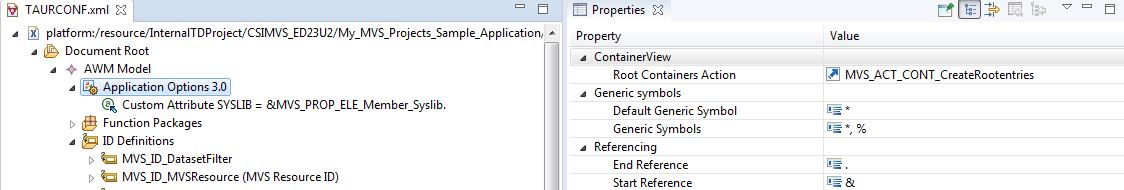

Because this is the first level element when expanding the application entry "MVS Projects Sample Application", the root containers action has to be associated in the application options section of the model editor:
