Installing the AWM SVN Model Files

There are several ways to make the AWM SVN model available in the AWM Team Developer perspective, see Master Configuration in the Workflow Manager Modeling Guide for more information. This applies to anEnterprise Developer installation as well as to an IDz installation:

1. To create a local master configuration file with the SVN application entries, copy the sample local master configuration file under %ProgramFiles(x86)%\Micro Focus\Enterprise Developer\etc\AWM\SVN Attachment\MasterConfig.xml into your Eclipse root folder, and adapt the reference to the model location as described in the file.
2. If a MasterConfig.xml file already exists in the Eclipse root folder, merge the application entries from the SVN master configuration file into this existing master configuration file.
3. After starting Enterprise Developer or IDz, add the local system to the Application Explorer view and load one of the delivered SVN models.
4. Right-click the Application Explorer view, and then click Add System(s).

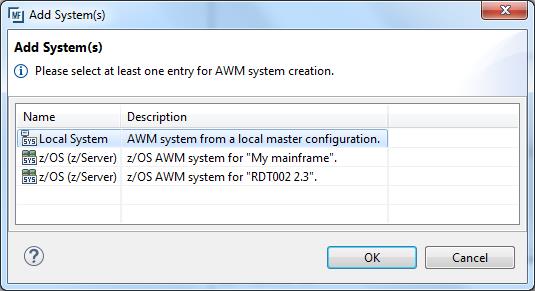

   This opens the Add System(s) dialog.

5. Select the AWM system from a local master configuration, and then click OK.



   Two SVN applications are displayed in the Application Explorer view.





   The installation process is now complete.
