Search Result (Line)

This element type is used to model a line in the search result where the text searched for was found.

The following figure shows how to model this element type:

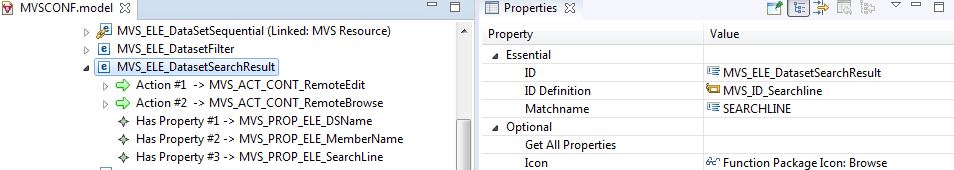

MVS Project Sample Application Search Line Type

You need an ID definition to describe the properties which uniquely identify an element of this type. In addition, an icon has been associated. The match name SEARCHLINE must match the name returned by the REXX procedure TAUTOSRC which returns the result from an ISPF search utility. If the Search action on a partitioned data set is executed at run time, the member records are displayed as a tree table, as in the figure below:

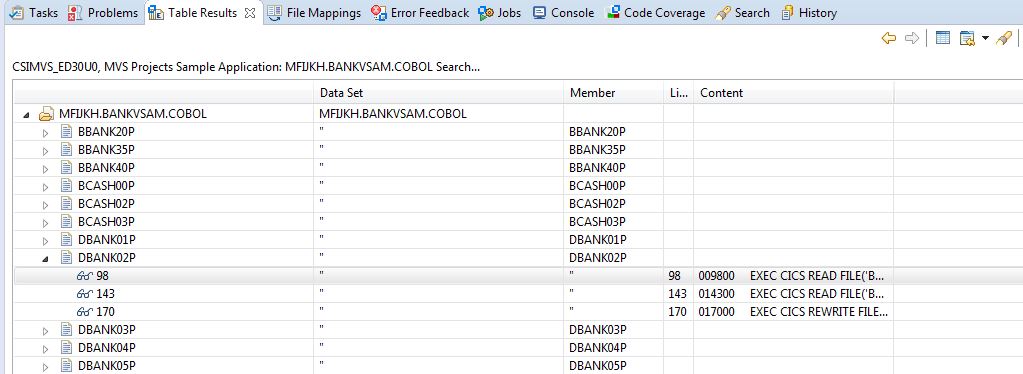

MVS Project Sample Application Search Line
