Search Result (Member)

This element type is used to model a PO member in the search result in which the text searched for was found.

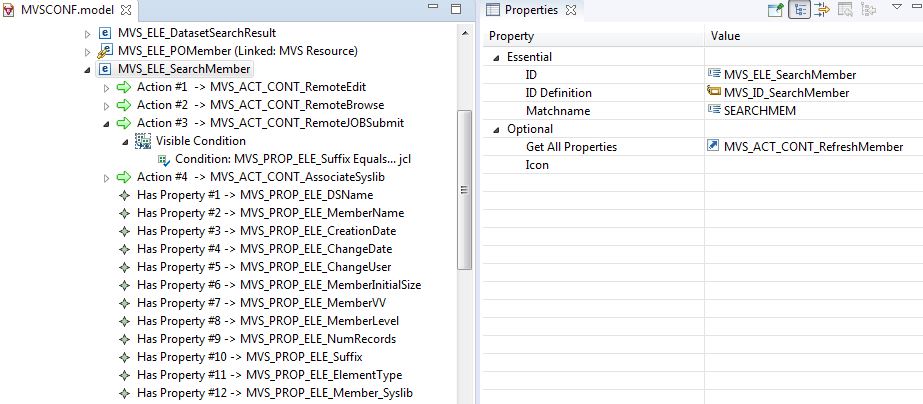

The following figure shows how to model this element type:

You need an ID definition to describe the properties which uniquely identify an element of this type.

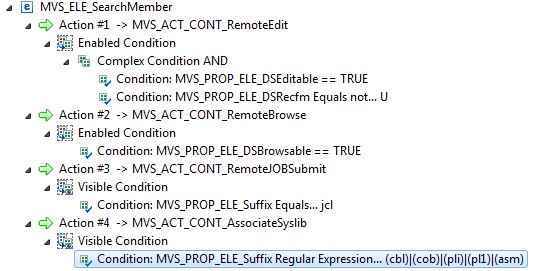

The icon is derived from the icon used in the MVS Explorer for a PO data set member. All actions have modeled enabled or visible conditions that have rules applied:

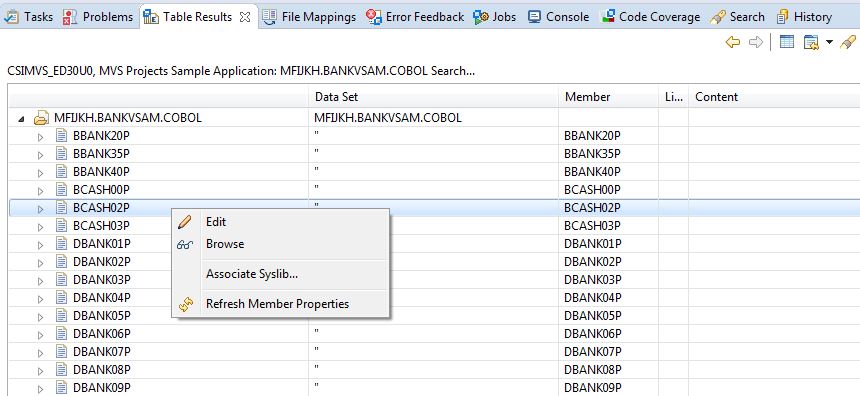

The match name SEARCHMEM must match the name returned by the REXX procedure TAUTOSRC which returns the result from an ISPF search utility. If the Search action on a partitioned data set is executed at run time, the member records are displayed as a tree table, see the figure below:


MVS Project Sample Application Search Member Type
