Host installation verification

Access to the Master Configuration File

No AWM client installation is needed to verify the AWM host installation.

Call the REXX procedure TAULAPPL from the ISPF command menu:

TSO EX ‘hlq.TAURUS.EXEC(TAULAPPL)

Or, if the TAURUS REXX library is allocated to SYSPROC or SYSEXEC

TSO TAULAPPL

The terminal output looks like this:

TAU System: TAURUS_Custom_System
TAU Appl: PDS Explorer
TAU Conf: mvs: 'hlq.TAURUS.XML(PDSECONF)'
TAU Version: 1.4
TAU INFO:
TAU RC: 0

Verify ISPF Client Gateway

Start IDz and navigate to the “Remote projects perspective”.

Select Launch TSO in the context menu for the “MVS Files” entry:

The IDz TSO command window opens.

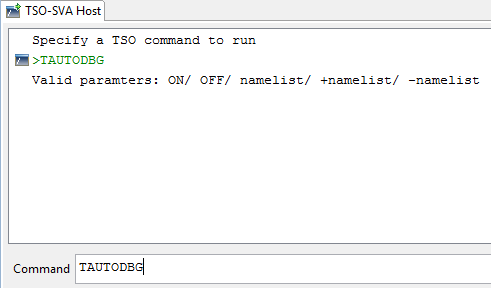

Enter TAUTODBG and press Enter. The following message can be seen:

Message “RC=20 invalid command” means that the REXX procedure TAUTODBG was not found. In this case verify that the AWM REXX procedures are allocated through the ISPF Client Gateway using the SYSPROC or SYSEXEC DDNAME.
