Form Fill Traces
The following sections describe how to enable logging for the Form Fill policies, describe the form that was used to create the Form Fill trace, then describe the entries that can be found in the logs:
Sample Form and Policy Used for the Trace

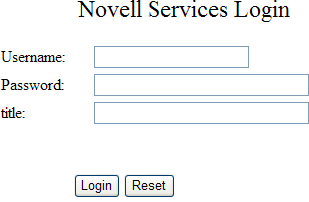

Figure 32-10 Form Used for the Trace
Source HTML for the Form
The name of the form and the fields that need to be filled in by the policy are in bold typeface.
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<meta http-equiv="Content-type" content="text/html; charset=utf-8">
<title>kelly</title>
</head>
<body>
<form name="mylogin" action="double.php" method="post" id="mylogin">
<center>
<table border="0" cellpadding="4" cellspacing="4" width="570">
<tr>
<td width="121" height="285" align="left" valign="top">
</td>
<td width="449" height="285" align="center" valign="top">
<p align="center">
<font size="5">Novell Services Login<br></font>
</p>
<table border="0" width="86%">
<tr>
<td width="25%">Username:</td>
<td width="75%">
<input type="TEXT" name="username">
</td>
</tr>
<tr>
<td width="25%">Password:</td>
<td width="75%">
<input type="PASSWORD" name="password" size="30">
</td>
</tr>
<tr>
<td width="25%">title:</td>
<td width="75%">
<input type="TEXT" name="title" size="30">
</td>
</tr>
</table>
</td>
</tr>
<tr>
<td colspan="2" align="center">
<input type="hidden" name="formNum" value="1">
<input type="submit" value="Login">
<input type="reset">
</td>
</tr>
</table>
</center>
</form>
</body>
</html>
Form Fill Policy
The following Form Fill policy was created for the mylogin form. The policy is called Form_Fill. You can use the name of the policy to find entries for it in the log files. The policy was assigned to the /identity/forms/simple.html protected resource. Because the URL path identifies a specific file on the web server, the policy does not require any CGI or page matching criteria.
Figure 32-11 The Form Fill Policy for the mylogin Form
This policy is configured so that the user never sees the form. Even on first login, the form is filled in for authenticated users because the user’s authentication credentials are used for the username and password fields, and the title field value is obtained from the LDAP user store. If the user does not have a value for the title attribute, the user sees the form every time the page is accessed. If you want the value to be saved for these users, you need to change the policy to use a secret store rather than an LDAP attribute.
