12.2 Deploying Access Manager Containers on AWS

NOTE:In this release, only a fresh installation of Access Manager is supported. You cannot upgrade from a previous version of Access Manager.

NOTE:During the installation, Access Manager creates the following directories for data persistence. These directories get created in the corresponding worker node in which you install the particular Access Manager component. The default location of these directories is /mnt.

  • eDirectory: <release-name>-am-edir

  • Administration Console: <release-name>-am-ac

  • Identity Server: <release-name>-am-idp

  • Access Gateway: <release-name>-am-ag

NOTE:If you decide not to install all Access Manager components, you can specify the details in the values.yaml file before running the helm chart.

For example, if you do not want to install Access Gateway, then specify enabled: false under Access Gateway in the values.yaml file. In this scenario, only Administration Console and Identity Server will get installed.

Similarly, if you do not want to install Identity Server, then specify enabled: false under Identity Server in the values.yaml file. In this scenario, only Administration Console and Access Gateway will get installed.

  1. Create a namespace under which you will deploy Access Manager.

    kubectl create namespace <name-of-the-namespace>

    NOTE:Creating a namespace is not mandatory. However, it is recommended to create one to deploy Access Manager. For more information about namespace, see Kubernetes Keywords and Their Usage in Access Manager.

  2. Download the Access Manager helm chart (AM_50_HelmChart-1.0.1.tgz) to the Master node from Micro Focus Downloads.

  3. Unzip the Access Manager helm chart by using the following command:

    tar -xzvf AM_50_HelmChart-1.0.1.tgz

  4. (Optional) Configure the Ingress rules. See Configuring Ingress.

  5. Run the helm chart by using one of the following approaches:

    • Approach 1: Specify the required values in the helm install command and run the command. In this approach, you specify the elements and the values after the --set string. The --set string overrides any value configured in the access-manager/values.yaml file.

    • Approach 2: Specify the required values in the access-manager/values.yaml file and run the helm install command.

    NOTE:Ensure that you execute the helm install command from the location where you have extracted the helm chart, which contains the access-manager directory.

    Approach 1

    Run the following command to install Access Manager:

    helm install --namespace <name-of-the-namespace> <release-name> access-manager --set global.amconfig.primaryAcIp=<primary-administration-console-IP> --set global.amsecret.adminName=<administrator-username> --set global.amsecret.adminPassword=<administrator-password> --set am-ac.primary.node=<name-of-the-primary-administration-console-node> --set am-ac.secondary.enabled=false

    Drafting a Sample Command

    Let us consider that the values of the command’s elements are as follows:

    Element

    Value

    Name of the Namespace

    development

    Release name

    my-deployment

    NOTE:You must use the following RegEx, which the Helm package manager enforces while assigning a release name:

    [a-z0-9]([-a-z0-9]*[a-z0-9])?(\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*

    Administration Console IP

    10.10.10.11

    You can run the kubectl get nodes -o wide command to view the IP addresses of the worker nodes, and then choose a node to install Administration Console. You must always install Administration Console in one of the worker nodes, not in the master node.

    Name of the Administration Console node

    kubew1

    kubectl get nodes -o wide command also displays the corresponding name of the node in which you have decided to install Administration Console.

    Administrator Username

    admin

    Administrator Password

    password

    IMPORTANT:Ensure that the administrator username and password meet the Conditions for Creating Administrator Username and Password.

    Then the command will look as follows:

    helm install --namespace development my-deployment access-manager --set global.amconfig.primaryAcIp=10.10.10.11 --set global.amsecret.adminName=admin --set global.amsecret.adminPassword=password --set am-ac.primary.node=kubew1 --set am-ac.secondary.enabled=false

    (Optional) To install Secondary Administration Console, change --set am-ac.secondary.enabled=false to true, and append the following string to the command:

    --set global.amconfig.secondaryAcIp=<secondary-administration-console-IP> --set am-ac.secondary.node=<name-of-the-administration-console-node> --set am-ac.secondary.enabled=true

    (Optional) If you want to use Ingress, then append the following string to the command:

    --set ingress.enabled=true

    (Optional) If you host the docker images on a separate repository, then append the following string to the command:

    --set global.image.repository=<path-of-the-Access-Manager-docker-images-repository>

    (Optional) If you use a private registry, then you must also specify the registry’s username and password. Append the following string to the command:

    --set global.image.pullSecrets.name=<registry-username> --set global.image.pullSecrets.password=<registry-password>

    Approach 2

    Configure the values and run the helm chart:

    1. Open the access-manager/values.yaml file.

    2. Specify the following details:

      Element

      Value

      repository

      (Optional)

      Path of the Access Manager Docker images

      pullPolicy: IfNotPresent

      (Optional)

      If you are using a private registry, then replace pullPolicy: IfNotPresent with pullPolicy: Always

      pullSecrets

      (Optional)

      If you are using a private registry, specify the registry’s username and password

      primaryAcIp

      IP address of the worker node where you will install the primary Administration Console

      You can run the kubectl get nodes -o wide command to view the IP addresses of the worker nodes, and then choose a node to install Administration Console. You must always install Administration Console in one of the worker nodes, not in the master node.

      adminName

      Administrator Username

      adminPassword

      Administrator Password

      node

      Name of the Administration Console worker node

      The kubectl get nodes -o wide command also displays the corresponding name of the node in which you have decided to install Administration Console.

      ingress

      (Optional)

      Specify enabled: true

      To configure Ingress rules, see Configuring Ingress.

      IMPORTANT:Ensure that the administrator username and password meet the Conditions for Creating Administrator Username and Password.

      NOTE:To install Secondary Administration Console along with the Primary Administration Console, specify enabled: true under Secondary Administration Console.

    3. Run the following command to install Access Manager:

      helm install --namespace <name-of-the-namespace> <release-name> access-manager

      NOTE:You must use the following RegEx, which the Helm package manager enforces while assigning a release name:

      [a-z0-9]([-a-z0-9]*[a-z0-9])?(\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*

  6. After you run the helm chart in Step 5, you get a message that Access Manager is installed. However, the Access Manager pods are not yet deployed. The deployment of pods takes about 10 minutes.

    Check the progress of the pods deployment by running the following command:

    kubectl get statefulset,pods --namespace <name-of-the-namespace>

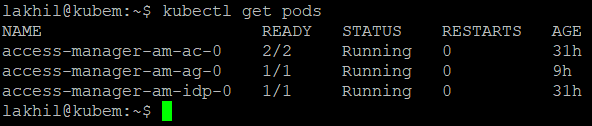

    An output similar to the following is displayed:

    The following table describes the output:

    Title

    Description

    Name

    Name of the Access Manager pods

    Ready

    The deployment status of the Access Manager containers in a pod.

    Explanation of the status:

    0/2 - None of the containers in the pod is deployed

    1/2 - One out of two containers is deployed

    2/2 - Two out of two containers are deployed

    Status

    After the containers are pulled from the repository, and the configuration starts, the status changes to Running. However, it does not mean that the pods deployment is complete. Check the Ready column to verify the deployment status.

    Restarts

    Number of time that the pod has restarted

    Age

    Amount of time that the pod is alive

    If the deployment does not complete in 10 minutes, proceed to Checking the Status of Access Manager Resources or Troubleshooting Access Manager Container Deployment.

    Proceed to Step 7 if the deployment is complete.

  7. Log in to Administration Console. (URL: https://<administration-console-IP>:2443/nps)

  8. After installing Access Manager, you must create cluster configurations. See Configuring Identity Servers Clusters and Access Gateways Clusters.
