USE GROUP directive

Generally, only elementary data items correspond to columns. The USE GROUP directive indicates that the following group item is to correspond to a column as if it were an elementary item of the same width. This is necessary if the item is stored in your database as a group, rather than as individual fields.

By default, the USE GROUP directive implies that the consolidated field is alphanumeric. If you want a numeric field, add the word NUMERIC at the end of the directive.

Grouping data items in this way is efficient if the groups are usually processed as units.

Syntax

$XFD USE GROUP

*(( XFD USE GROUP ))

Example

You might use this directive with fields like multi-part account numbers or department numbers, or keys that are referenced as a unit but not by their individual pieces. In the sample file, you can group the year and seq_no fields to make a single account number column (acct_no), as shown below:

       FILE SECTION.
       FD  jr-file.
      $XFD COMMENT  This sample file demonstrates directives.
       01  jr-record.
           03  animal-info.
      $XFD NAME=PATIENT, NUMERIC
               05  patient-id                  pic x(5).
               05  atype                       pic x.
               05  ctype redefines atype       pic x.
               05  dtype redefines atype       pic x.
               05  otype redefines atype       pic x.
           03  owner-info.
               05  phone                       pic x(8).
      $XFD READ-ONLY
               05  owner                       pic x(30).
           03  financial.
      $XFD USE GROUP
               05  acct_no.
                   10  year                    pic x(2).
                   10  seq_no                  pic x(4).
      $XFD, USE GROUP, DATE=YYYYMMDD
               05  last_visit.
                   10  yyyy                    pic 9(4).
                   10  mm                      pic 9(2).
                   10  dd                      pic 9(2).
      $XFD HIDDEN
               05  fee                         pic s9(5)v99.

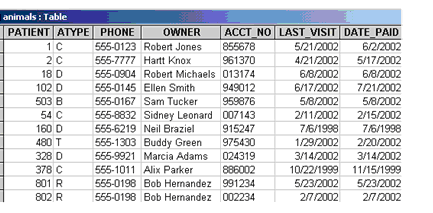

The resulting table looks similar to this:

If you are using an existing database in which certain fields are grouped, they must also be grouped in your COBOL FD.

Why group fields?

If the database does not yet exist, keep in mind that combining fields into groups typically improves execution speed. Whether to group fields or not also depends on how you want to process them. Do you always store and use the fields together? Someone who really knows how the data is being used might help to identify groups of fields that can be combined to speed processing.

Once you have grouped fields, you can apply other directives to them, such as DATE, NUMERIC, and ALPHA.
