Execution results for example 11

The following sections display the output of the COBOL program that is run and the XML document that is generated.

COBOL display

Note: Pressing a key will terminate the program.

Running the program (run example11) produces the following display:

 Example-11 - Illustrate IMPORT with missing
intermediate names
 address11.xml exported by XML EXPORT FILE
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/02 13:58:13.62
 address11.xml imported by XML IMPORT FILE:
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/02 13:58:13.62
 x-address11.xml imported by XML IMPORT FILE:
 Name: Wild Hair Corporation
Address-1: 3543 Hair Court
Address-2: Sweet 800
Address-3: Lostin TX78787
Country: United States of America
Time-Stamp: 00:00:00.00
 You may inspect 'address11.xml' & 'x-address11.xml'
 Status: +0000
Press a key to terminate:

XML document

Microsoft Internet Explorer may be used to view the generated XML document, address11.xml and the predefined XML document x-address11.xml. (Note that Internet Explorer will differentiate among the various syntactical elements of XML by displaying them in different colors.)

address11.xml

Content of generated XML document address11.xml

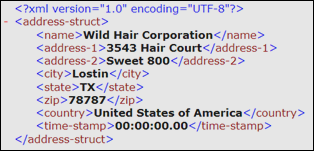

xaddress11.xml

Content of generated XML document xaddress11.xml
