Background to multiple run units and .NET

.NET server applications, such as ASP.NET and WCF Services, typically have multiple users, each user running a session simultaneously with other users, whereas COBOL applications traditionally run single sessions each independent of each other. In .NET, server applications are executed and controlled by application domains. Each application domain can execute multiple instances of an application at the same time.

By default, when a procedural COBOL application runs in an application domain, it is executed in the default COBOL run unit and it uses threads that share the same address space, by definition. If the application is executed several times simultaneously, that same run unit is used and consequently the same data is shared between all executions, which can cause problems.

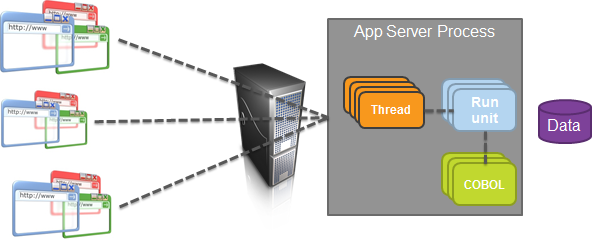

In a multiple user environment, the COBOL application must use multiple run units, with each instance of the application running in its own run unit. To do this, you need to:

• Compile the COBOL that you want to call. For procedural COBOL programs use the NOILSTATIC directive, which is the default. This enables any COBOL classes created to be included in a run unit.
• Call the COBOL program within its own run unit. To do this, the calling program creates a run unit and creates an instance of the COBOL type that contains the program. Then the program instance can be invoked within the new run unit.
• Include the run-time support for multiple run units, by adding a reference to the Micro Focus Runtime (Interop RuntimeServices) assembly (which appears as a MicroFocus.COBOL.RuntimeServices reference in your project).

Existing procedural COBOL is left unchanged:

Any COBOL program or CLASS with instance data/methods can be used with multiple run units providing you do not compile with the REENTRANT or ILSTATIC directives.
