Execution results for example 11

The following sections display the output of the COBOL program that is run and the XML document that is generated.

COBOL display

Note: Pressing a key will terminate the program.

Running the program (run example11) produces the following display:

 Example-11 - Illustrate IMPORT with missing
intermediate names
 address11.xml exported by XML EXPORT FILE
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/02 13:58:13.62
 address11.xml imported by XML IMPORT FILE:
 Name: Specialty Cowboy Boots Company
Address-1: 1050 North San Antonio Street
Address-2: Suite 200
Address-3: Austin TX78701
Country: United States of America
Time-Stamp: 2013/07/02 13:58:13.62
 x-address11.xml imported by XML IMPORT FILE:
 Name: Wild Hair Corporation
Address-1: 3543 Hair Court
Address-2: Sweet 800
Address-3: Lostin TX78787
Country: United States of America
Time-Stamp: 00:00:00.00
 You may inspect 'address11.xml' & 'x-address11.xml'
 Status: +0000
Press a key to terminate:

XML document

Microsoft Internet Explorer may be used to view the generated XML document, address11.xml and the predefined XML document x-address11.xml. (Note that Internet Explorer will differentiate among the various syntactical elements of XML by displaying them in different colors.)

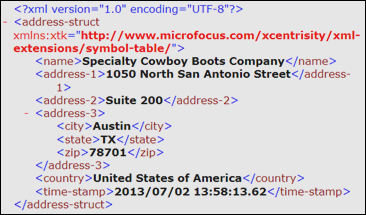

address11.xml

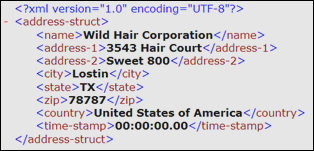

xaddress11.xml
