Application Options
Global settings that apply to the complete application can be defined under the application options.
One attribute of the application options is Version. At run time, the version of the local AWM model is compared with the version entry in the Master Configuration file. See Master Configuration for more information.
The attributes Start Reference and End Reference are used for parsing variable references. See Variable References for more information. By default these have the values “&” and “.”.
In addition, the tool execution can be controlled from the application options. The maximum return code that the tool can return without its execution being interpreted as “failed” is specified in the attribute MaxRC. Failed tools end with an error message, and prevent the execution of further tools in the tool sequence of the action.
The Root Containers Action attribute can be used to refer to an action which returns the root elements used to build up the first hierarchical view of the application which are visible in the Tree view. The referenced action descriptor must return an element list whose match name property typically references a container element type. See Table Structure for more information.
| Attribute | Type | Description |
|---|---|---|
| Cache Elements | Boolean | Specifies whether AWM elements, elements lists, and column configurations for element lists are cached during application
unloading. An application is unloaded when another application is loaded or when the Eclipse workbench is closed.
Default value: True |
| Default_Generic_Symbol | String | The standard wildcard character usually used to match all elements. Generic input fields are automatically filled in with
this symbol.
Default value: * |
| End_Reference [D] | String | Symbol or character string that should be interpreted as meaning the end of a reference, see above.
Default value: . |
| Generic_Symbols [O] | String | Specifies the wildcard characters for a generic search. The characters given here are used to validate generic input fields
in dialogs.
The characters can be added via a dialog box opened when you click .... The characters entered here may depend on the integrated application system. |
| Independent Affected Resource Contexts | Boolean | Specifies if the affected resource contexts should be independent from the main context. See
Tool-defined Resource Operations for more information.
Default values:
|
| Max_RC * | Integer | Specifies the maximum permitted return code of a tool that is called from the model interpreter.
The tool execution is interpreted as being faulty if this value is exceeded. |
| Model ID | String | ID of the model; for internal use only. |
| Root Containers Action [O] | Action Descriptor | The selected action is executed when the application entry in the tree view is expanded by the user in order to retrieve container elements of the first hierarchy level. |
| Start_Reference [D] | String | Symbol or character string that should be interpreted as meaning the start of a reference.
Default value: & |
| Version * | String (for example, 1.2.1) | Version of the AWM model |
| Relationship | Cardinality | Description |
|---|---|---|
| Has_Application_Action | 0..* | Relationship to an action which is assigned to the application |
| Has_Application_Property | 0..* | Relationship to a property with application-wide scope |
| Has_Specific_Attribute | 0..4 | Relationship to a specific attribute. |

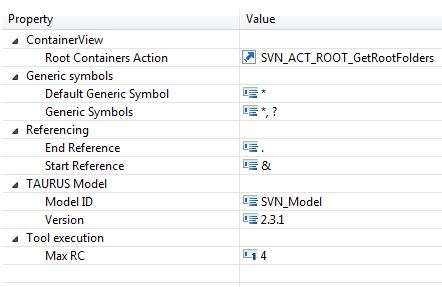

Example
| Attribute | Value | Description |
|---|---|---|
| ContainerView: | ||
| Root Containers Action | SVN_ACT_ROOT_GetRootFolders | Reference to the action which returns the root folders of the SVN application. |
| Generic Symbols: | ||
| Default Generic Symbol | * | Asterisk is interpreted as default generic symbol in the SVN application. |
| Generic Symbols | *,? | Asterisk and % are interpreted as generic symbols in the SVN application. |
| Referencing: | ||
| End Reference | . | A period is used to terminate a property reference in the SVN application. |
| Start Reference | & | An ampersand "&" is used to start a property reference in the SVN application. |
| TAURUS Model: | ||
| Model ID | SVN_Model | For internal use only; should not be changed. |
| Version | 2.3.1 | Version number of this instance of the SVN application. By changing the version number the AWM model administrator can trigger the local copy of the SVN application to be replaced by the new instance from the location specified in the master configuration file. |
| Tool Execution: | ||
| Max RC | 4 | If any tool of the SVN application returns with an RC higher than 4, the tool execution is interpreted as failed and the whole action is terminated with an error message. Subsequent tools in the action are not executed. |
