Configure Adis Support for RM/Panels

After importing the Adis configuration file, you must configure it to handle the enhanced ACCEPT and DISPLAY statements in a way that RM/Panels is expecting it to.

Visual COBOL ships with a version of Adis that contains a configuration intended for applications that include RM/Panels syntax.

  1. Using a  Visual COBOL command or shell prompt, navigate to the project output directory (that is, the directory containing ADISCTRL).
  2. Enter ADISCF.

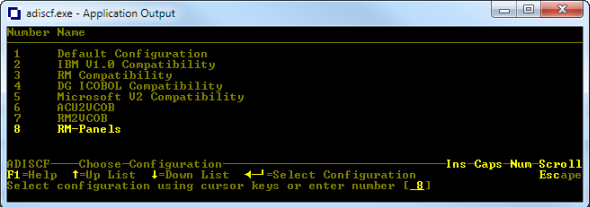

    The adiscf.exe window appears.

  3. Press F6, then ensure that the RM-Panels configuration is selected.


  4. Press Esc twice to exit.
    Note: if you are prompted to exit without saving, press N, F4, then Esc twice again.
