In this release, as well as the VisiBroker 4.1 release and later, the Portable Object Adaptor (POA) supports the features that were provided by the BOA in the VisiBroker 3.x and 4.0 releases. For backward compatibility reasons, you may still use the object activators as described in this section with your code. For more information on how to use the BOA activators with this release, see “Using the BOA with VisiBroker”.
You can defer activation of multiple object implementations using service activation with a single Activator when a server needs to provide implementations for a large number of objects.
You can derive your own interface from the Activator class. This allows you to implement the pure virtual activate and deactivate methods that the VisiBroker ORB will use for the AccountImpl object. You can then delay the instantiation of the AccountImpl object until the BOA receives a request for that object. It also allows you to provide clean-up processing when the BOA deactivates the object.
The following code sample shows the Activator class.

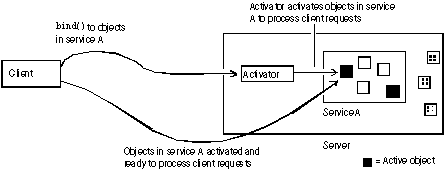

Service activation can be used when a server needs to provide implementations for a large number of objects (commonly thousands of objects, possibly millions) but only a small number of implementations need to be active at any specific time. The server can supply a single Activator which is notified whenever any of these subsidiary objects are needed. The server can also deactivate these objects when they are not in use.
For example, you might use service activation for a server that loads object implementations whose states are stored in a database. The Activator is responsible for loading all objects of a given type or logical distinction. When VisiBroker ORB requests are made on the references to these objects, the Activator is notified and creates a new implementation whose state is loaded from the database. When the Activator determines that the object should no longer be in memory and, if the object had been modified, it writes the object's state to the database and releases the implementation.
|
3
|
Implement the Activator which creates the object implementations on demand. In the implementation, you derive an Activator interface from extension::Activator, overriding the activate and deactivate methods.
|
The following sections describe the odb example for service activation which is located in the following VisiBroker directory:
|
When make or nmake (on Windows) is invoked in the odb subdirectory, builds the following client and server programs:
Server.exe, Creator.exe, and Client.exe. |
The odb example shows how an arbitrary number of objects can be created by a single service. The service alone is registered with the BOA, instead of each individual object, with the reference data for each object stored as part of the IOR. This facilitates object-oriented database (OODB) integration, since you can store object keys as part of an object reference. When a client calls for an object that has not yet been created, the BOA calls a user-defined Activator. The application can then load the appropriate object from persistent storage.
In this example, an Activator is created that is responsible for activating and deactivating objects for the service named “DBService.” References to objects created by this Activator contain enough information for the VisiBroker ORB to relocate the Activator for the DBService service, and for the Activator to recreate these objects on demand.
The DBService service is responsible for objects that implement the DBObject interface. An interface (contained in odb.idl) is provided to enable manual creation of these objects.
The DBObject interface represents an object created by the DB interface, and can be treated as a service object.
DBObjectSequence is a sequence of DBObjects. The server uses this sequence to keep track of currently active objects.
The DB interface creates one or more DBObjects using the create_object operation. The objects created by the DB interface can be grouped together as a service.
The idl2cpp compiler generates two kinds of constructors for the skeleton class _sk_DBObject from boa/odb/odb.idl. The first constructor is for use by manually-instantiated objects; the second constructor enables an object to become part of a service. As shown below, the implementation of DBObject constructs its base _sk_DBObject method using the service constructor, rather than the object_name constructor typically used for manually-instantiated objects. By invoking this type of constructor, the DBObject constructs itself as a part of a service called DBService.
The base constructor requires a service name as well as an opaque CORBA::ReferenceData value. The Activator uses these parameters to uniquely identify this object when it must be activated due to client requests. The reference data used to distinguish among multiple instances in this example consists of the range of numbers from 0 to 99.
Normally, an object is activated when a server instantiates the classes implementing the object, and then calls BOA::obj_is_ready followed by BOA::impl_is_ready. To defer activation of objects, it is necessary to gain control of the activate method that the BOA invokes during object activation. You obtain this control by deriving a new class from extension::Activator and overriding the activate method, using the overridden activate method to instantiate classes specific to the object.
In the odb example, the DBActivator class derives from extension::Activator, and overrides the activate and deactivate methods. The DBObject is constructed in the activate method.
When the BOA receives a client request for an object under the responsibility of the Activator, the BOA invokes the activate method on the Activator. When calling this method, the BOA uniquely identifies the activated object implementation by passing the Activator an ImplementationDef parameter, from which the implementation can obtain the CORBA::ReferenceData, the requested object's unique identifier.
As shown in the following code sample, the DBActivator class creates an object based on its CORBA::ReferenceData parameter.
The DBActivator service activator is responsible for all objects that belong to the DBService service. All requests for objects of the DBService service are directed through the DBActivator service activator. All objects activated by this service activator have references that inform the VisiBroker ORB that they belong to the DBService service.
As shown in the following code sample, the DBActivator service activator is created and registered with the BOA using the BOA::impl_is_ready call in the main server program.
The call to BOA::impl_is ready is a variation on the usual call to BOA::impl_is_ready. It takes two arguments:
Whenever an object is constructed, BOA::obj_is_ready must be explicitly invoked in DBActivator::activate. There are two calls to BOA::obj_is_ready in the server program. One call occurs when the server creates a service object and returns an IOR to the creator program.
The second occurrence of BOA::obj_is_ready is in DBActivator::activate, and this needs to be explicitly called.
The main use for service activation is to provide the illusion that a large number of objects are active within a server, but to have only a small number of these objects actually active at any given moment. To support this model, the server must be able to temporarily remove objects from use. The multithreaded DBActivator example program contains a reaper thread that deactivates all DBObjectImpls every 30 seconds. The DBActivator simply releases the object reference when the deactivate method is invoked. If a new client request arrives for a deactivated object, the VisiBroker ORB informs the Activator that the object should be reactivated.
