Multiple Configurations on the Same Server

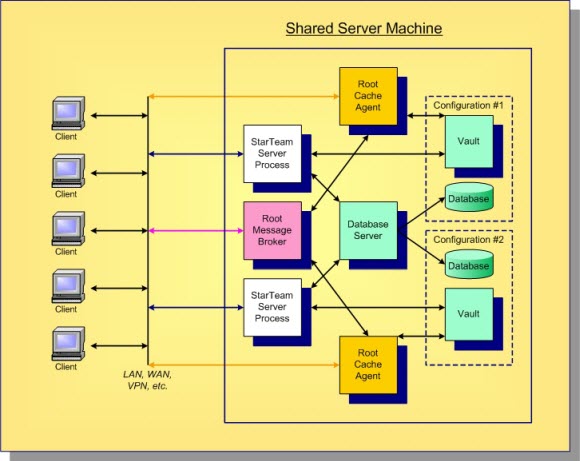

For small- to medium-sized server configurations, you can place all StarTeam Server components on a single machine. Furthermore, you can also deploy all components for multiple configurations on the same machine depending on the sum of concurrent users of all configurations. The diagram below shows both basic and components deployed.

You should use a single machine for all StarTeam Server components only when the total number of concurrent users for all configurations does not exceed 100. Even though a single configuration can support more than 100 users, each configuration has a certain amount of overhead. Consequently, we recommend that when the total peak concurrent user count reaches 100, it’s time to move at least one configuration to its own machine.

With a single machine, all StarTeam Server processes, the root Message Broker, root MPX Cache Agents, and the database server process execute on one machine. Here are some rules of thumb for this layout:

Start with 2 cores and 2 GB of memory for the database server process.
Add 2 cores and 2 GB of memory per StarTeam configuration.
If you use locally-attached disk for each StarTeam configuration’s vault and database partitions, use separate, fast drives to improve concurrency. Also, the disks should be mirrored to prevent a single point of failure.
If you deploy , all StarTeam configurations can share a single root MPX Message Broker. Though not shown, one or more remote Message Brokers may be connected to the root Message Broker.
If you deploy MPX Cache Agents, each configuration needs its own root MPX Cache Agent, which can share the root Message Broker. Though not shown, one or more remote MPX Cache Agents may be connected to each root MPX Cache Agent.
Be sure to configure each StarTeam Server, Message Broker, and root MPX Cache Agent process to accept TCP/IP connections on a different port.

Using these guidelines, you can deploy three to four small StarTeam configurations on one machine, only if the total number of concurrent users doesn’t peak above 100 or so. Otherwise, the various processes could begin to compete for resources (CPU, memory, disk I/O, and/or network bandwidth), adversely affecting responsiveness. Also, if you start out with the single-server configuration, don’t forget to plan on moving components to their own machines when demand grows over time.

CAUTION:

The disadvantage of deploying multiple configurations on a single machine is that they are all affected when the machine must be upgraded, patches need to be installed, someone kicks the power plug, and so forth.
