Before you begin, contact your sales representative for your Enterprise Cloud Services user name and password.
-
Choose
.
-
Type your Enterprise Cloud Services
User name and
Password.
-
Click
Connection Settings if your company requires the use of a proxy.
-
Select
Enable Proxy.
-
Enter the required information in
Address and
Port.
-
Click
OK.
-
Click
Login.
If your company proxy requires authentication, you may be prompted with another dialog box to log in.

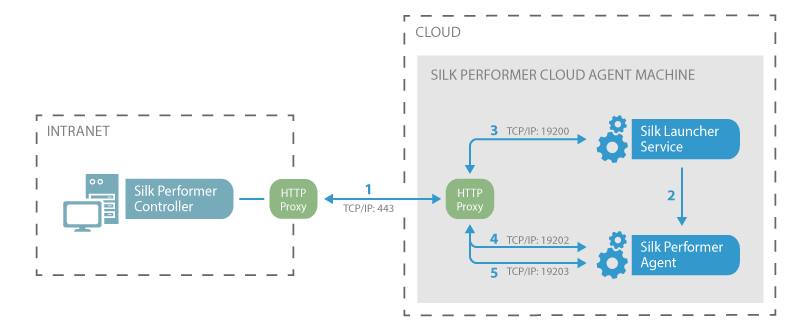

Agent Connection Establishment in the Cloud
- Controller opens initial connection to Silk Launcher Service through an HTTP Proxy and port 443.
Silk Performer automatically uses the default port number of 443 for a secure connection. Connection goes through an additional HTTP proxy
if company policy requires it.
- Service launches the
Silk Performer agent process (perfLtcAgent.exe).
- Service returns agent's listener port (19202) to the controller.
- Controller connects to the agent on port 19202 through the proxy, port 443, and another proxy if required.
- Optional: For collecting real-time measure data, the controller connects to the agent on port 19203 through the proxy, port
443, and another proxy if required.
|
