System Health Page

Administration > System Health

Use the System Health page to view the current health status of your Performance Manager system.

Note: To download the information on this page in XML-file format, click Download. This is especially useful when requesting assistance from customer support.

The System Health section displays the following information:

Item	Description
MeasureCache size	Number of measures per monitor/location combination that are currently cached in the system's RAM. The displayed hit ratio should eventually reach 100%. If the hit ratio goes down or never reaches 100%, this is an indicator that Performance Manager's caching system does not work as expected. Requesting assistance from customer support is recommended in such a case.
MeasureCache measSize	Number of records for raw data that are sent to the database in an SQL batch job.
MeasureCache lastSize	Number of records for aggregated data that are sent to the database in an SQL batch job.
HealthCache size	Number of project-wide measures that are currently cached in the system's RAM. The displayed hit ratio should eventually reach 100%. If the hit ratio goes down or never reaches 100%, this is an indicator that Performance Manager's caching system does not work as expected. Requesting assistance from customer support is recommended in such a case.
MeasureCount SYN	Number of measures that are generated by the system per hour from synthetic monitors. active monitors x measures per monitor x active locations x monitor runs where monitor runs = scheduled executions per hour.
MeasureWriteTime (limit)	The maximum time that the system may use to write one measure to the database, based on calculated estimates. See Measures received / written per period for actual numbers.
MeasureWriteTime (avg)	The average time that the system actually uses to write one measure to the database. If this value is higher than MeasureWriteTime (limit), the system is overloaded. See also Customizing the Displayed Information on the System Health Page.

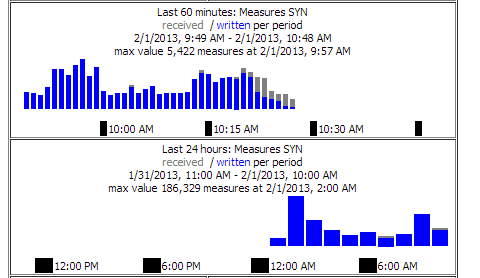

Measures received / written per period	The Measures received / written per period graph displays the amount of measures that the application server has received from all execution servers in a specific period of time. The upper graph displays the numbers for each minute over the last 60 minutes, the lower graph the numbers for each hour over the last 24 hours. Received measures are displayed as gray bars, which should ideally turn to blue bars (written measures) at the end of a period, as all received measures have been written to the database. If you see a stacked bar (blue / gray), this indicates that the system was not able to write the full amount of received measures to the database in the specific period. System overload? Stacked bars (blue / gray), which indicate that the system was not able to write the full amount of received measures to the database in a specific period, do not necessarily mean that your system is not able to handle the load anymore -- it is possible that during certain background activities (for example database backup, index rebuilds, or data deletion jobs), the system may be overloaded for some time, while it may very well be able to recover again after such activities have been completed. Examine the trend in the chart to interpret the load on your system: If gray bars eventually turn blue, this means that the system was able to catch up again. However if the frequency and duration of gray bars increases over time or if you observe a constant overload (gray bars), you may want to reduce the volume of measures being written. Ultimately these only become a concern if the total backlog continues to grow. This graph is intended to give you an early warning of how much and how frequently you have input exceeding output so you can address it before measure volumes become unmanageable. There are several suggested ways to reduce the volume of measures including: Reduce the number of active monitors. Increase the scheduled time between monitor runs. By default, script recordings will create several measures for each individual web page accessed in a script in addition to the overall transaction time. If you don't need the multiple measures for each web page in a script (e.g. measures for total end to end, server busy, document upload, ...), replace the name of the web page measure in the script’s function calls with an empty string " ". Replace one or more page timer measure names commented out as above, if desired with a custom timer which results in only one measure. Reduce the number of locations running a monitor to only those necessary. Note: The amount of written measures is usually slightly higher than the amount of received measures, as application server-specific measures (for example overall health and performance) are counted towards the amount of written measures, however they are not calculated as received measures as they do not come from the execution servers.

The ProjectWriter Backlogs section displays the number of results in the queue, displayed for each project. These are measures that are delivered by the execution server, but are not yet saved to the database.

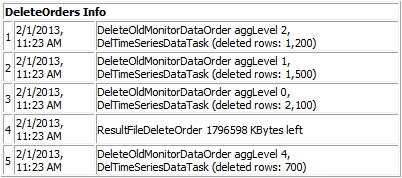

The DeleteOrders Info section is only visible if data storage reduction processes are currently running. It displays the running DataDelete jobs, where each DataDelete job actually creates a job per project plus an additional job for the result files.

The ExecServers section (see Customizing the Displayed Information on the System Health Page) displays all execution servers and certain statistical information for each of them:

Tasks: Amount of monitors scheduled on the execution server.
Res Cach: Amount of results that have not yet been received by the application server. This value should ideally be zero.
Res Buf: Displays whether persistent result data is enabled or not on the execution server.
TotMem: Java heap size that is currently allocated.
FrMem: Java heap size that is still available.
MxMem: Maximum Java heap size.

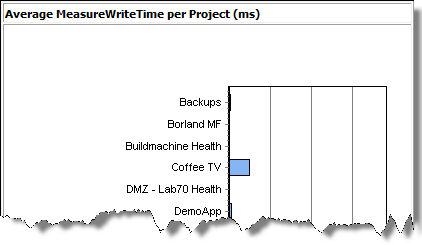

The Average MeasureWriteTime per Project (ms) section displays the average time that the system actually uses to write one measure to the database, for each project.
