4.1 Workload Status

The Workload Status panel in the Dashboard provides summary metrics for a transformation project. The report does the following:

  • Displays metrics for a selected project based on the role and permissions for the logged-in user. All waves and batches are included by default.

  • Displays custom metrics by a specified wave or batch.

  • Runs status and count calculation jobs every 5 minutes.

Each column heading links to a view of the Workloads list that has been filtered to list the related workloads. In the report, the Status column shows the transformation workflow state and the migration sub state. You can pause over the state or sub state message to view details in a tooltip.

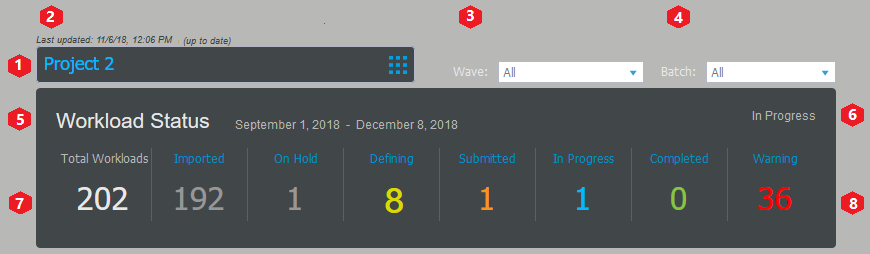

Figure 4-1 Project View of Workload Status

Table 4-1 Dashboard Information

Key

Metric

Description

1

Project

If you have roles on multiple projects, use the Project field to select which project’s information to display. If you have a project set in the Global Project Selector, PTM automatically sets this field.

If you have a role on a single project, the Project field and Global Project Selector settings are static.

2

Last Updated

The PTM Server compiles status and counts for each project every 5 minutes. This time stamp indicates when the statistics were last updated. If a status change occurs while the Dashboard is open, PTM changes the Last Updated status from Up to date to Update pending, then refreshes the statistics at the end of the measurement interval.

3

Waves

If a project has multiple waves, the Waves field enables you to select which wave’s information to display. The default is all waves.

4

Batches

If a project has multiple batches, the Batches field enables you to select which batch’s information to display. The default is all batches.

5

Schedule

At the top of the Workload Status pane, PTM displays the start date and cutover date of the project, wave, or batch currently being displayed.

6

Project Status

The current state of the project. For example: Planning, In Progress, Closed.

7

Workload Status

The Workload Status panel in the Dashboard provides the total number of workloads for the project, wave, or batch currently being displayed, and the counts for those workloads in each transformation state, on hold, and with health warnings. Click the category title or value to open a Workloads list with the related member items.

  • Total Workloads

  • Imported

  • On Hold*

  • Defining

  • Submitted

  • In Progress

  • Completed

  • Warning*

* Workloads that are On Hold or have a Warning are counted in one of transformation categories, and are also tallied separately.

8

Warning

The count includes any workload transformation that has one or more of the following conditions:

  • Transformation is in a failed state.

  • Transformation is not in progress, but the transformation start date has passed.

  • Transformation has not been competed, but the transformation cutover date has passed.

  • Transformation start date is before its parent's start date (batch, wave, project).

  • Transformation cutover date is after its parent's cutover date.

You can alternatively use the Health > All Warning States option on the Advanced Search dialog to see all workloads in the Warning state.
