24.2 UMC Health Script

The umcServiceHealth Script verifies the health of the UMC server and all services running on the server.

The options are:

Options

Description

-s|--service-check

Verifies the health of the dependent services. The services are:

  • apache2.service

  • postgresql.service

  • ndsd.service

  • microfocus-umc-server.service

  • microfocus-umc-backend.service

  • docker.service

  • docker-edirapi.service

-e|--edirapi-check

Verifies the health of the Docker container (edirapi-container).

-c|--cert-check

Verifies the health of the server certificate, displaying details such as:

  • Certificate expiry date

  • Public Key SAN details

  • Private Key status

-u|--edirObj-check

Verifies the health of the umcConfig object under the security context of the eDirectory.

-d|--db-check

Verifies the health of the PostgreSQL database (internal or remote).

IMPORTANT:umcServiceHealth.sh -dautofix - mention that .sh is not required. It will be cleaned up soon.

-n|--nodeModule-check

Verifies the availability of the node_modules folder.

-a|--all-check

Verifies the health of the UMC server and run the other checks.

24.2.1 Autofix

The autofix script automatically fixes detected issues without your intervention. If an issue is encountered upon executing the health script, to resolve it, run the same script with the autofix option enabled. This option can be used along with:

  • --service-check

  • --db-check

  • --nodeModule-check

  • --all-check

The autofix script does not resolve issues related to critical components like eDirectory and server certificate. Hence, these options (--edirapi-check, --cert-check, and --edirObj-check) are not supported as they require your validation and intervention for proper resolution.

Example

To verify the health of the dependent services.

umcServiceHealth -s

Displays the status of dependent services on this server. The Apache service is down, it displays its state and command to restart the service. Alternatively, you can rerun this command with autofix to resolve the issue.

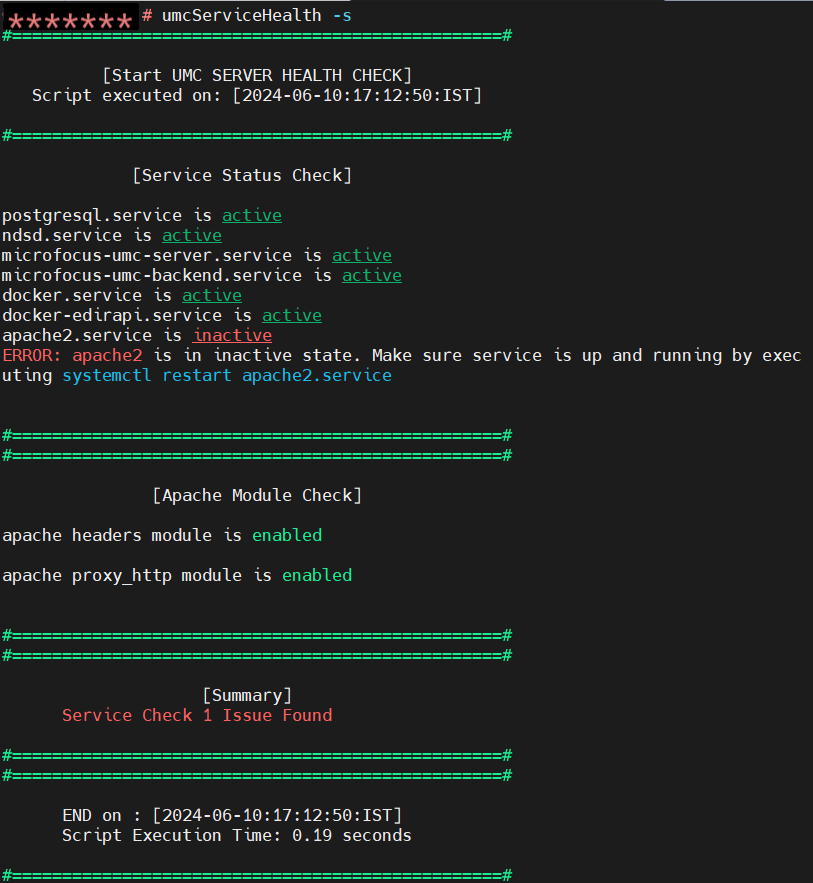

Figure 24-1 umcServiceHealth Script

To fix the Apache issue automatically, run the script with autofix option.

umcServiceHealth -sautofix

The Apache service is successfully restarted.

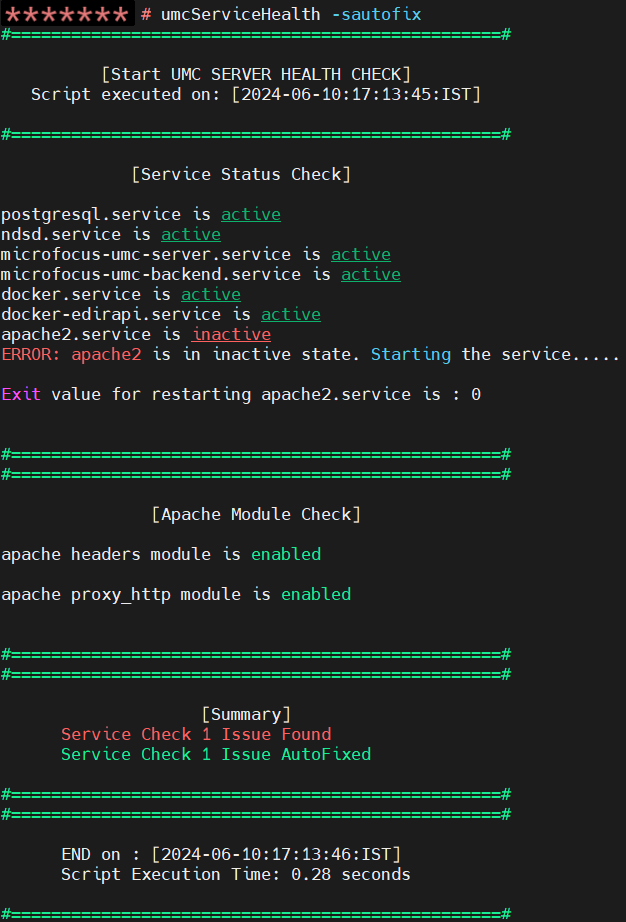

Figure 24-2 umcServiceHealth script autofix
