6.0 Content Editor

The Content Editor (CE) appliance enables collaborative editing feature for Filr users. The functionalities are:

  • Secure edits of the documents

  • Multiple files that can be concurrently edited by multiple users

  • Supports collaborative edits for all major file types like documents, spreadsheet, and so on

  • Edits are done by using the Browser, no Native application is required

  • Policies to block copy, print, and download of the content

  • By default, this functionality is available for all files under My Files, Shared With Me, Shared By Me and Net Folder areas.

A separate appliance is required as the collaborative editing is a resource intensive task. Around 100 files can be concurrently edited by using this functionality.

Content Editor Dialog

Path: Port 8443 Filr Administration Console > System > Content Editor

NOTE:This functionality is only available on Filr Advanced Edition. This feature is available with Filr Web UI, desktop clients and mobile apps.

IMPORTANT:CE ships with a self-signed certificate. Ensure to change the self-signed certificate to a valid trusted certificate, so all the clients can use this functionality.

Table 6-1 Edit Online Feature Availability

Apps / Clients

Edit Online Feature Availability

Require Valid Trusted Certificate

iOS Filr Mobile App

Yes

Yes

Android Filr Mobile App

Yes

No

Windows Filr Mobile App

No

Not Applicable

Mac Desktop Client

Yes

Yes

Windows Desktop Client

Yes

No

Linux Desktop Client

No

Not Applicable

Before you configure the Content Editor options, you must do the following:

  • Deploy a Content Editor appliance.

  • Configure the Content Editor appliance with the DNS hostnames of each Filr appliance that you want to be able to connect to it.

    While installing CE, ensure that it is installed in the same domain where Filr is installed. For both Filr and CE, at each level, domain names should be the same. For example, top-level domains (such as “.com”), second-level domains (such as “abc.com”), and lower-level domains, also called sub-domains (such as “support.a.com”).

    For more information, see Content Editor.

Table 6-2 Using the Content Editor Configuration dialog

Field, Option, or Button

Information and/or Action

Enable Content Editor

  1. Select this to enable collaborative editing for Filr users.

  2. Specify the configuration information for the following fields.

  • Server URL

  • The server address (IP address or DNS hostname) of the Content Editor appliance.

  • Test connection button

  • Click this to test the connection between Filr and the Content Editor appliance.

Content Editor Policies:

Set the policies that will be applicable to the user when performing collaborative edit.

When a user is editing the file and if changes are made to the policy, then the file has to be reloaded for the changes to take effect.

  • Disable copy

  • Content from the document cannot be copied to any other document.

  • Disable print and download

  • The file you are editing cannot be printed or downloaded to your local workstation.

  • Disable Watermark

  • By default, this option is enabled.

    When this option is enabled, watermark is displayed across the document. Email id or name of the user is displayed as watermark. The watermark is also displayed on printing the document.

    NOTE:This option is available with CE 1.0.1 and later versions.

Self Signed Certificate

If the user is using a self signed certificate, then the self signed certificate needs to be downloaded from the Filr Appliance and exported to the Content Editor Appliance.

To export the self signed certificate from Filr, perform the following steps:

  1. Path: Port 9443 Appliance Console > Digital Certificates

  2. Select Web Application certificate.

  3. Select certificate which is listed as self-signed_cert and Export as Public certificate.

To import the self signed certificate to Content Editor, perform the following steps:

  1. Path: Port 9443 Appliance Console > Digital Certificates.

  2. Select JVM Certificates.

  3. Click file options and select Import and Trusted certificate.

  4. Browse the certificate downloaded from Filr and import it to Content Editor

Adding Fonts

Path: Port 9443 Appliance Console > Configuration > Custom Fonts

You can upload new fonts and use them in the Content Editor. You can either upload a font file (.tff or .otf) or upload a .zip file having multiple font files. If the user is already editing a file, then reload the Content Editor page for the newly added fonts to appear in the Fonts drop-down menu.

Figure 6-1 Upload Custom Fonts

Table 6-3 Uploading Custom Fonts

Field, Option, or Button

Information and/or Action

  • Path to font file

  • Install

  • Enter the path of the font file or click Browse ot select the font file file that you want to add to the Content Editor.

    Click this to choose the font file (.tff or .otf .zip) file that you want to add to the Content Editor.

  • Install button.

    Click this to install the font file that you have selected.

Dashboard

The Dashboard is used for monitoring system utilization and performance of Content Editor. You can do live monitoring of all the user sessions running on Content Editor.

Perform the following steps, to view the dashboard:

  1. Path: Port 9443 Appliance Console > Dashboard

  2. Specify the credentials.

After entering the correct password, you can view the list of live documents opened, total users, memory consumption, document URLs with the number of users viewing that document. You can also end the sessions directly from the panel which results in closing the socket connection to the respective document.

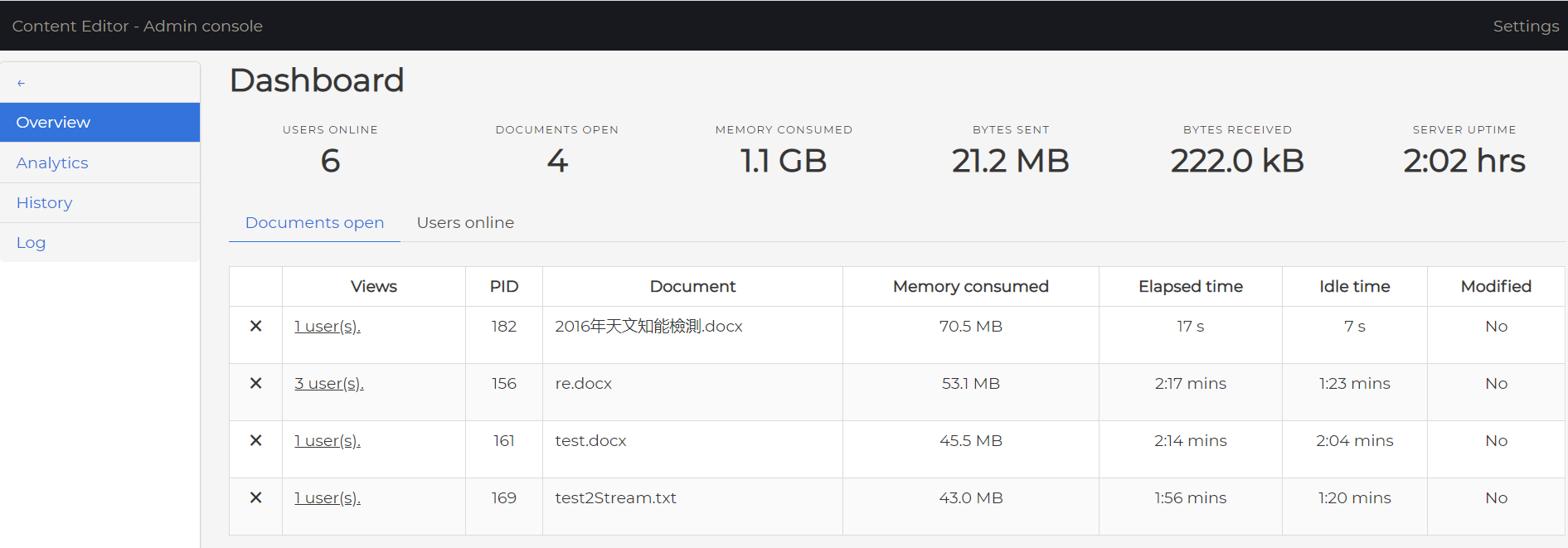

Figure 6-2 Dashboard Monitor
