To add an instance of an additional preprocessor

1. Click Start.
2. Type regedit in the Search programs and files field.
3. Press Enter, this starts the Registry Editor application.
4. Create a root node key ADDONS for all Enterprise Developer add-ons:

   HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Micro Focus\Visual COBOL\2.3\ADDONS

5. Create the following subtree of registry keys within the root node:
   1. Create a key, MyAddon1 - this is the brand name of your add-on as it will appear in the project and file properties. In our example, MyAddon1 is MyCompany:

      HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Micro Focus\Visual COBOL\2.3\ADDONS\MyCompany

6. For the MyAddon1 key, create a registry value for the version of the preprocessor to use – Version with value of 1.0 if that is the version of the preprocessor to use:



7. Create a subkey versionPreproc1 under MyAddon1 for the version number of the preprocessor to use. This indicates the active preprocessor to be used and should match the value of the registry entry Version specified for MyAddon1 .

   In this example, the key should be 1.0:

   HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Micro Focus\Visual COBOL\2.3\ADDONS\MyCompany\1.0

8. Create a subkey PreProcessor under the versionPreproc1 key:

   HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Micro Focus\Visual COBOL\2.3\ADDONS\MyCompany\1.0\PreProcessor

9. Within this node, create the following group of registry entries:

   Registry entry	Value	Description
   PP_01	P(path\mypreprocessor.ext)	Where path\mypreprocessor.ext is the full path to the executable file for your preprocessor.
   PPName_01	PreprocessorName	The name of the preprocessor as it should appear in Enterprise Developer. For example: “XYZ preprocessor”.
   PPOptions_01	Preprocessor arguments	Arguments to pass to the preprocessor when it is selected in Enterprise Developer. Optional (you do not need to specify PPOptions_01 if the preprocessor does not take any arguments). For example, the XYZ preprocessor might recognize “-r -s” as valid arguments.
   PPExtension_01	ext	File extensions that should be treated as COBOL by Enterprise Developer so they are recognized as a valid resource for the COBOL Compiler. Optional.
   PPBGP_01	1 or 0	A Boolean to specify if background parsing is supported (1) or not (0).

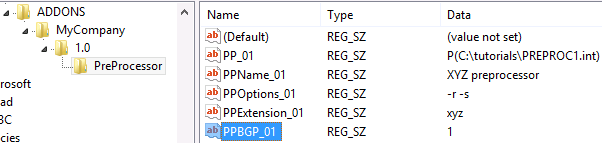

In our example, your registry entries look as follows:

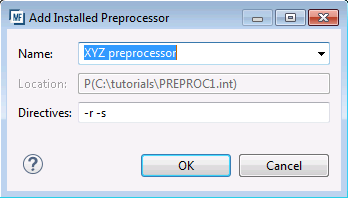

This is how you can select your preprocessor in the project properties in Enterprise Developer
