This opens Host Access for the Cloud in your default browser and connects it to the IMSDEMO enterprise server using a TN3270 connection. You can see the login page of the IMSDEMO application.

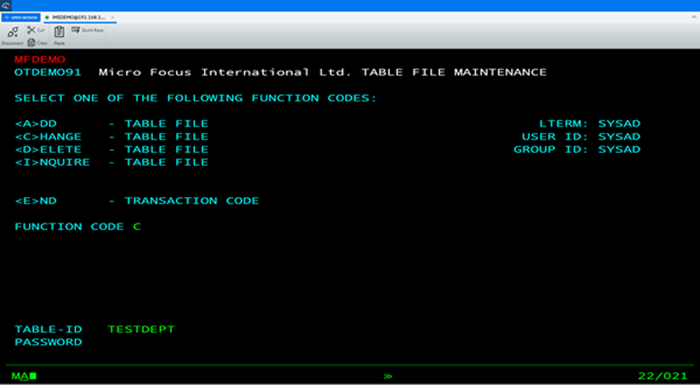

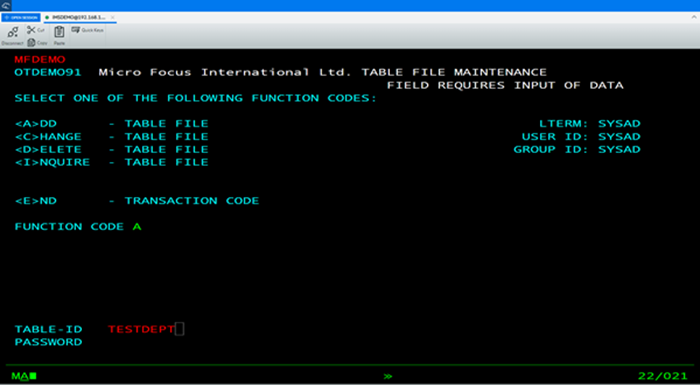

HACloud shows the MFDEMO initial menu screen, DEMO91.
In the sections that follow, each set of instructions includes a screen shot showing the terminal emulator with required fields in green and red.
This action advances your cursor to the TABLE-ID field.
This action advances you to the DEMO92 input screen.
DESCRIPTION | A TABLE OF TEST DEPARTMENTS |
NUMBER OF CHARACTERS IN ELEMENT KEY | 20 |
NUMBER OF CHARACTERS IN ELEMENT | 50 |
PASSWORD PROTECT | N |
ELEMENT KEY | ELEMENT VALUE/DESCRIPTION |
---|---|
123 | DEPARTMENT 123 |
234 | DEPARTMENT 234 |
This action advances your cursor to the TABLE-ID field.
This action advances you to the DEMO92 input screen.
FUNC | ELEMENT KEY | ELEMENT VALUE/DESCRIPTION |
---|---|---|
A | 345 | DEPARTMENT 345 |

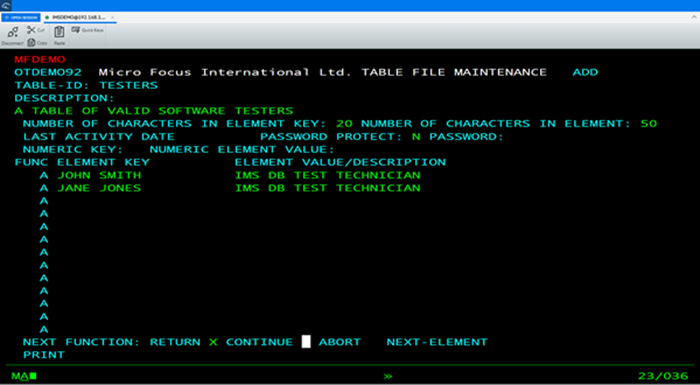

DESCRIPTION | A TABLE OF VALID SOFTWARE TESTERS |
NUMBER OF CHARACTERS IN ELEMENT KEY | 20 |
NUMBER OF CHARACTERS IN ELEMENT | 50 |
PASSWORD PROTECT | N |
ELEMENT KEY | ELEMENT VALUE/DESCRIPTION |
---|---|
JOHN SMITH | IMS DC TEST TECHNICIAN |
JANE JONES | IMS DB TEST TECHNICIAN |
