Making the Most of The COBOL Editor

The Visual Studio editor provides a variety of features to boost your performance when writing COBOL code.

The defaults are aimed to help you when writing COBOL code. You can fine-tune the behavior of the editor and the productivity features from Tools > Options or by clicking (Configure Micro Focus COBOL Text Editor Settings).

AutoCorrect

The AutoCorrect feature enables you to automatically correct your common typing mistakes. In the IDE preferences, you specify a list of words that you sometimes mistype, and the correct spellings for them. When you type the misspelled versions in the editor, AutoCorrect automatically corrects them.

Configure AutoCorrect from Tools > Options > Text Editor > Micro Focus COBOL > AutoCorrect.

Background Syntax Checking

The COBOL code is checked in the background, as you type it. Any errors are underlined with wavy red lines. You can turn this setting off or on the Advanced page in Tools > Options > Text Editor > Micro Focus COBOL.

Generally, we recommend that you leave Background Syntax Checking turned on as a number of IDE features rely on it and are not available when it is disabled. You might consider turning it off only when editing exceptionally large files. See Known Issues and Restrictions for more information about which IDE features areBookmark Window not available in that scenario.

Shows the bookmarks added to source code in your solution. Choose View > Bookmark Window to display the window.

Bookmarks

To add a bookmark, position the cursor on a line in the code and choose Edit > Bookmarks > Toggle Bookmark.

Brace completion

A closing quote mark or bracket is automatically inserted when you type the opening quote mark or bracket at the end of a line.

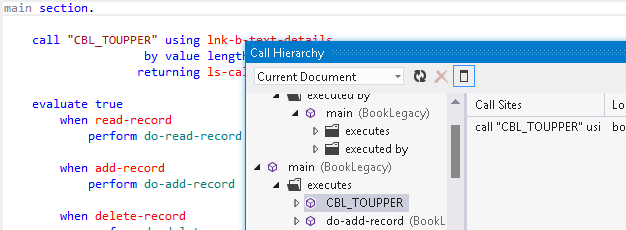

Call Hierarchy Window

Either right-click in the editor and click View Call Hierarchy or click View > Call Hierarchy from the main menu.

Class View Window

Shows an outline of the classes used in your solution and their members. To display the window choose View > Class View. This applies to .NET COBOL projects only.

COBOL Formatting

Click Edit > Advanced and either Format COBOL Program or Format filename to apply consistent formatting and indentation to your sources. You can adjust your preferences for formatting from Tools > Options > Text Editor > Micro Focus COBOL > Code Style > Formatting.

COBOL Margins

The editor provides colorized margins for fixed and variable COBOL source code. You can specify whether to display or hide the margins from the Margins page in Tools > Options > Text Editor > Micro Focus COBOL. You can change the color of the margins and the margin text from Tools > Options > Environment > Fonts and Colors and then the COBOL Margin and COBOL Margin Text settings. The margins are automatically updated according to your preferences if the background parse is turned on.

COBOL Reserved Words

To configure the case of the COBOL reserved words used in the code snippets for COBOL choose Tools > Options > Text Editor > Micro Focus COBOL > Code Style > Text Casing and set the case in the Case format for reserved words field.

Code Definition Window

If you position the cursor on an object in the source code, the Code Definition Window automatically displays the section of the code implementing the objects referenced on that line. To display the window choose View > Code Definition Window.

Code Snippets

Insert the code constructs for elements of the COBOL language, for example for classes, methods and delegates in .NET COBOL. To insert a snippet choose Edit > IntelliSense > Insert Snippet, or right-click in the editor and select Insert Snippet, or type the shortcut for the particular snippet (for example, class-id, method-id) and press Tab. This inserts an outline of the syntax for you to fill in. Snippets are available in both native and .NET COBOL code.

To configure the case in which the code snippets are displayed choose Tools > Options > Text Editor > Micro Focus COBOL > Code Style > Formatting and set the case in the Case format for identifiers field.

CodeLens navigation

CodeLens is an adornment, either a clickable number of references or the information button, , above paragraph and section names, class declarations, or Unit Test entry points. CodeLens enables you to explore the references, or execute an action while positioned in the same place that you are editing.

For Micro Focus Unit Testing entry points, CodeLens displays the information button, , that enables you to run or debug the test directly from that entry point in the editor

Collapse to Definitions

Click Edit > Outlining > Collapse to Definitions

Comments

• End-of-line comments - start end-of-line comments in the code using *>.
• Comment out a line of code - for fixed or variable source format of code, enter * in column 7 or, for FREE source format of code, enter * in column 1 to comment out an entire line.
• XML documentation comments - in .NET COBOL , type *>> to create Visual Studio-style XML documentation comments.
• Task List comments - to create Task List comments, type the declaration of a comment immediately followed by any of the following phrases - TODO, HACK or UNDONE. To see the comments, check the Task List window (click View > Task List to show the window). The window shows all comments added in the files that have been opened in the editor and such that are part of any copybooks referenced by these files.

  To define other tokens as Task List comments or to change the priority of the comments, go to Tools > Options > Environment > Task List.

  To configure whether the IDE should display the Task List comments in the Task List window, go to Tools > Options > Text Editor > Micro Focus COBOL > Advanced and specify a preference for the Show Comment Tasks option.

Completion of statements

When you start typing an IF, PERFORM or an EVALUATE statement, the editor automatically inserts the ending clause and aligns the code in the statements.

Editing Standalone Files

This only applies to native COBOL. The recommended way to work with Enterprise Developer is to include all source files in a project because this enables full support for the IDE editing, compiling and debugging features. There is limited support in the IDE for stand-alone files, such that are not part of a project and Enterprise Developer provides a path to create projects for these files in order to enable full editor, build and debug functionality. To create a project from a stand-alone file, right-click in the editor and click Create COBOL Project.

To edit a stand-alone file, first open it in the editor using File > Open > File. Alternatively, double-click the file in Windows Explorer or start it from a command prompt. You can edit the file in the usual way. Note, however, that background syntax checking is not available for standalone files so no errors are reported as you type. You need to recompile in order for the IDE to check your code and report any issues.

When starting the IDE from the command line, also set the COBCPY environment variable to point to the folders where the IDE should search for copybooks.

To specify the locations of any copybooks used in the stand-alone file when the copybooks are not in the same location, set the COPYPATH Compiler directive in the IDE on the Build Directives page in Tools > Options > Micro Focus Tools > Standalone Editing as COPYPATH(<location1>;<location2>;...). You then need to recompile the file.

To specify non-default locations of copybooks, when opening the file from the command line also specify the COBCPY environment variable as an argument at the command line and set it to point to the folders where the IDE should search for the copybooks.

Follow the Single COBOL Files Support link at the end of this topic for information about the level of support for stand-alone files.

Editor Zoom

Zoom in or out the text in the COBOL editor by pressing CTRL and scrolling with the mouse.

Errors Window

Shows the errors, warning and messages created when editing or compiling. Double-click on an item in the errors list to position the cursor on the line of code that causes the error. You can get help on the error by pointing to the relevant error number and pressing F1.

Expanded Copybook View

To show the contents of a copybook inline in the place where the COPY statement is, right-click the line for the COPY statement in the editor, and click Show "copybookname".

To show all copybooks that are referenced in the file, either right-click in the editor, and click Show all copybooks, or click in the COBOL toolbar.

Extract to Copybook

Make a selection in the editor that includes the lines of code you want to move into a copybook, right-click the selection and click Extract to Copybook. This enables you to create a new copybook that includes the entire lines of code from your selection. In the editor, the selected code is replaced by a COPY statement that refers the new copybook.

Find in Files

Click Edit > Find and Replace > Find in Files (or press CTRL+SHIFT+F).

To search in all copybooks - the ones that are part of the project as well as the ones that are found in the paths defined on the Dependency Paths tab in the project properties - set the search scope in the Find and Replace dialog to COBOL Project Copybook Paths.

This search in the COBOL program currently opened in the editor and in any copybooks referenced by that program, select the Current COBOL Program option.

Find All References

In the editor, right-click a COBOL data item, a section or a paragraph name in the code and select Find All References. A list of all places in the solution that contain the reference to the item is displayed in the Find Symbol Results window. Double-clicking on an item in the list positions the cursor on the line of code that includes the element. The default shortcut for invoking Find All References is Shift+F12. See General Visual Studio IDE Issues for information about the limitations when using Find All References.

Find Symbol Results Window

To display the window, click View > Find Results > Find Symbols Results. Displays the results of Find All References command in the editor. Double-click an item in the list to position the cursor on the line that includes the referenced item.

Format Document/Format Selection

Changes the case of the source file currently opened in the editor or of a selection as specified on the Formatting page in Tools > Options > Text Editor > Micro Focus COBOL. To format the file or a selection of code, click Edit > Advanced > Format Document or Edit > Advanced > Format Selection.

Go To Definition (F12)

Pointing to a variable in the editor and pressing F12 positions the cursor on the definition of that variable.

Performing Go To Definition on a copybook name opens the copybook in the editor.

Go To Line

Click Edit > Go To.

Go To Previous Method / Go To Next Method

Click , Go To Previous Method, or , Go To Next Method, in the COBOL toolbar to navigate easier in native Object-Oriented and .NET COBOL code. Alternatively, use the Go To Previous Method and Go To Next Method editor context menu commands.

Go To Procedure Division / Go to Working-Storage Section

The Go To Procedure Division , , is available from the Edit menu and on the COBOL toolbar.

Click the downward arrow next to in the COBOL toolbar to access the Go to Working-Storage Section command.

Click to move the cursor following these rules:

• For procedural programs, the cursor moves to the first line of the Procedure Division of the COBOL source.
• For Object-Oriented programs, if the cursor is inside a class and before the method definitions, the command moves it to the first line of the Procedure Division of the first method.

  If the cursor is inside the methods declarations but outside a method, the command moves it to the first line of the Procedure Division of the preceding method.

  If the cursor is after a class, the command moves it to the first line of the Procedure Division of the last method of the class.

• If the cursor is in a copybook file which you opened from Solution Explorer, the command moves it to the first line of the Procedure Division of the first COBOL source that includes the copybook. If the copybook file was opened from a particular COBOL file, the command moves the cursor to the first line of the Procedure Division of that COBOL file.

IntelliSense

Provides writing assistance in the editor. In both native and .NET COBOL, provides suggestions for COBOL words or snippets when you press Ctrl + Spacebar or start typing in the editor. In .NET COBOL, IntelliSense also displays lists of the namespaces, types, members and parameters that are available when you type an object name followed by a space, dot, double colon or an opening bracket.

Light Bulbs (Quick Actions) -

Quick actions, also known as light bulbs, are a productivity feature of the Visual Studio editor that enables you to quickly resolve some of the errors reported in your code such as to implement a missing piece of code or to find a copybook which is not found in the projects copybook paths. The light bulb icon () appears when you hover the line of code which reports an error. Click the icon to view and select from the available actions for resolving the issue.

Locate definition

(Locate definition) on the COBOL toolbar enables you to search for data items and identifiers by specifying any string of characters that might be part of their name.

To return to where you were in the code, click (Navigate Backwards) in the standard Visual Studio toolbar.

Navigate To

Click Edit > Navigate To to open a search widget.

Enables you to search for symbols and filenames and navigate to different locations of the current solution. Double-click an item in the result to view the definition in the code.

Note: For .NET COBOL projects, Navigate To search only works if at least one of the COBOL source programs has been opened in the IDE. For native projects, Navigate To search only works only for the COBOL source programs that have been opened once in the IDE.

Navigation Bar

The navigation bar at the top of the COBOL editor displays the current project and file, and drop-down list showing the current section and all objects and procedures used in the current program as well as the Procedure Division, any sections, paragraphs, and group level data definitions. Use the right-hand drop-down to position the cursor on any of the objects or sections in the file.

You can resize the drop-down fields such as if you want to hide one of them:

Navigation using the Home and End keys

Pressing Home repeatedly first moves the cursor immediately before the first non-white space in the current area, then at the beginning of the area, or to the first non-white space in the preceding area. Pressing End repeatedly first moves the cursor immediately after the last non-white space in the current area, and then at the start of the following area. You can change this default behavior from the Tools > Options > Text Editor > Micro Focus COBOL > Margins page.

Object Browser

The Object Browser window (click View > Object Browser) enables you to explore the objects in your .NET COBOL applications. Click a node in the left pane of the Object Browser window to see its members. Click a member in the pane in the top right corner to view the member's definition as provided by its XML documentation comment in the code. Double-click a class or a class member in the Object Browser to navigate to the definition of that class or member in the source files.

Outlining

Enables you to hide portions of the code. Choose Edit > Outlining > Toggle Outlining Expansion.

Override Class Members Wizard

A user interface that facilitates you in overriding the members of an inherited class. To invoke the wizard, right-click inside the class in the editor and choose Snippet > Override Class Members. The wizard displays the members that you can override and which class they belong to. Select the members you want to override and click OK. This adds the selected methods with the override modifier at the end of the class. Works with .NET COBOL code only.

Peek Definition

Right-click on a data item in the editor and click Peek Definition. Opens a small window, embedded in the editor, showing the data item definition.

You can edit the code in the embedded window. You can also open several peek definition windows and use the breadcrumbs navigation to switch between them.

Ruler

The horizontal ruler is turned off by default. To enable it, click Tools > Options > Text Editor > Micro Focus COBOL, and then click Margins. Check Show the ruler. Check Mainframe style if you wish the ruler to indicate areas A and B of the code.

Smart Edit Mode

The Smart edit mode controls the word wrapping and the indentation in the different COBOL areas. To toggle the mode on and off, click , Toggle Smart Edit Mode. You can configure this from Tools > Options > Text Editor > Micro Focus COBOL, and on the Margins and Tabs pages.

Syntax Colorizing

Colorizes the members of the COBOL language, for example data items, statements, comments, level 78 words, in different colors. To configure the colors for the COBOL language, choose Tools > Options > Environment and click Fonts and Colors. The items related to COBOL are prefixed with "COBOL".

Syntax Help

In the editor, point to a COBOL reserved word and press F1 to display the syntax Help for that word.

Task List Comments

Task List comments - to create Task List comments, type the declaration of a comment immediately followed by any of the following phrases - TODO, HACK or UNDONE. To see the comments, check the Task List window (click View > Task List to show the window). The window shows all comments added in the files that have been opened in the editor and such that are part of any copybooks referenced by these files.

To define other tokens as Task List comments or to change the priority of the comments, go to Tools > Options > Environment > Task List.

Viewing Copybooks With Replaced Values

For copybooks which your code modifies with COPY… REPLACING statements, you can open the copybooks from the editor and view their code with the replaced variables. In the COBOL editor, right-click the line which has the COPY… REPLACING statement, and click Open copybook with replaced values. The copybooks opens in a separate tab in the editor in read-only view and shows the replaced variables.

XML Documentation Comments

Insert XML documentation comments immediately before all your types and members to provide a description of what they do. Start each line of the documentation comment with *>>. When you start typing, IntelliSense shows the classes and methods you can use and the definitions are displayed as tool-tips.
