Migrating a Dialog System Application to Enterprise Developer

To migrate an application, you start by opening a Net Express project in Enterprise Developer. This invokes the Net Express Project Import wizard that converts the project into an Enterprise Developer solution.

Alternatively, you can use the Dialog System Application project templates available in Enterprise Developer to create a solution manually and add the files from the Dialog System application to it.

There is one Dialog System specific item that is added to the project and that is the screenset, the .gs file. The wizard sets the following properties on the screenset file and you need to do the same if you create the project manually:

Copy to Output Directory is set to Copy if newer. This ensures that the screenset is added to the output directory whenever the screenset is changed.
Build Action is set to Content. This ensures that the screenset is not compiled and consequently doesn't create spurious warnings or errors.

When the Dialog System application is in Enterprise Developer, you can continue to maintain and run it with Enterprise Developer, as shown here:

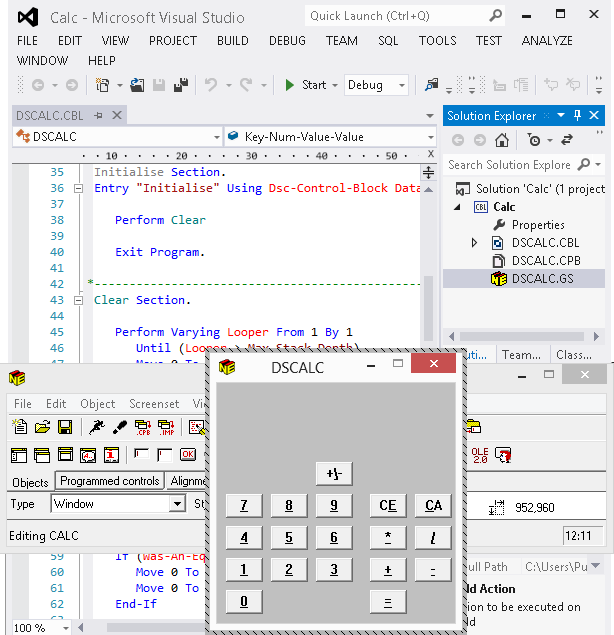

Screenshot of a dialog system application in the IDE

In Enterprise Developer, you can:

Open the screenset, by double-clicking the .gs file in Solution Explorer. This starts Dialog System with the screenset open, ready for you to edit.
Edit a .cbl file by double-click it in Solution Explorer.
Build and debug the application. Although debugging COBOL is supported, the screenset animator is not supported.
Run the application.
Enable the Windows visual styles in a Dialog System application using a manifest file or the MFVSSW environment variable.
Note: The Dialog System Application (Modern) project template has visual styles enabled by default.

Debuggable OO Class Libraries

If your application uses the native OO COBOL class libraries, and you want to step into those libraries when debugging, you need to build debuggable versions of them. This is different from Net Express, where the libraries were supplied and you could select them from the IDE. To build and use debuggable versions of the libraries:

Open the project for the required class library. The projects are located in the cpylib folder of your installation, which is by default %ProgramFiles(x86)%\Micro Focus\Enterprise Developer. The class library projects are:
- Base class library - basecl\classm.cblproj - installed with Enterprise Developer
- GUI class library - guicl\apiguim.cblproj - installed with Enterprise Developer
- OLE class library - olecl\olecl.cblproj - installed with Enterprise Developer
Ensure the Debug configuration is selected and then build the project. The resulting output is stored in the debug subfolder of the project folder.
In your application, set the COBPATH environment variable to point to the folder containing the debuggable version of the library. To do this, add the variable to the application.config file, as follows:
1. Open your application in Enterprise Developer.
2. Right-click your main project and click Add > New Item > Application Configuration File.
3. Double-click Application.config in Solution Explorer.
4. In the Name field, specify COBPATH.
5. In the Value field, specify the full path of the folder. For example, %ProgramFiles(x86)%\Micro Focus\Enterprise Developer\cpylib\guicl\debug.
6. Click Set.

Note: The Help for the class libraries is available in the file nxrclr.chm, which is installed in the Help folder of your installation. The default location is %ProgramFiles(x86)%\Micro Focus\Enterprise Developer\Help.

Examining object reference items

Enterprise Developer enables you to examine native object reference data items to allow the object's instance data to be displayed, provided that the debug information for the object's class is available.

The debug tool shows both the hexadecimal and the actual value of the data item.
