Local Master Configuration

If you do not want users to have a mainframe connection when working with the Workflow Manager, they can use a local master configuration file or default configuration.

A local master configuration file can either be located in the Eclipse root folder with the name MasterConfig.xml or MasterConfig.txt depending on its format. See Master configuration syntax for more information. Alternatively, a master configuration file can be returned by a local operating system command. See Master Configuration for more information. In this case, a local system reference can be created in the Application Explorer view:

Right-click in the Application Explorer view, and then click Add System.
This opens the Add System(s) dialog box.
Click Local System.
Click OK.

Expand the local system reference to view all the applications defined in the local master configuration file.

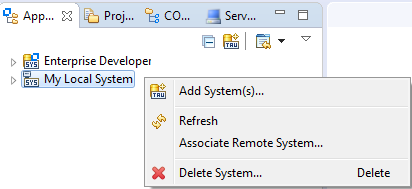

If any application of a local system reference contains mainframe-dependent actions, or the model of one of the applications is stored on the mainframe, you must add the mainframe connection to the local system reference, right-click the local system reference, and then click Associate Remote System:

Associating a remote system to a local system reference

After you have associated the remote system, the label of the local system reference changes and the Properties view displays properties of the selected remote system. The context menu now displays the Remove Associated Remote System command. A local system reference with an associated remote system acts like a remote system reference, except the local master configuration is not provided via the mainframe.

Master configuration syntax

The master configuration can be specified in one of two supported formats, flat format and XML. Both formats use the same keywords. The table below lists all available keywords and their descriptions.

The XML format is currently only supported by local system references, meaning that master configuration files located on the mainframe must be defined in flat format.

The flat format master configuration consists of lines with keywords, together with their respective values. The keywords are separated from the values by a colon and at least one space.

For example, a row in the master configuration file might look like this:

System: System_name

Lines beginning with an asterisk (*) are interpreted as comments.

Flat format	XML format	Description
System	<System>	Name and identifier of the remote system as it is displayed in the tree view. It is used as a unique identifier for caching application data, therefore, Micro Focus strongly recommends that you do not change the name in a production system.
Appl	<Appl>	Name and identifier of the modeled application as it is displayed in the tree view.
Conf	<Appl conf="…"/>	Platform, path, and name of the model file.
Version	<Appl version="…"/>	Version of the model file.
INFO	<Appl info="…"/>	Optional. Information about the data that is deleted for consistency in the Eclipse workspace when loading a new version of the model.
User	<Appl user="…"/>	Limits the corresponding application(s) to one or more RACF users. Multiple users can be separated with spaces.
Property: <Property ID>=<Value>	<Property propertyID="…" value="…"/>	Static property values for an application.
EndUser	Not required	End of a user limitation.
EndAppl	</Appl>	End of an application description.
Parmfile	Not required	Optional. This is the name of the remote parameter file that is used to transfer long parameters between the client and the remote system when executing remote commands. The name may contain property references. If the parmfile option is not specified, the standard name of the parameter file is <userid>.TAURUS.PARMFILE.

Any number of modeled applications can be listed for a system. The master configuration file must have at least one application defined.

The Conf entry consists of the specification of the platform together with the platform-dependent fully-qualified or absolute file name. Permissible platform designations are local and mvs.

Examples of correct Conf data:

mvs:'hlq.MODEL.XML(MYCONF)'
local:c:\config\config.xml (Windows)

The INFO entry determines which persistent information held in the Eclipse workspace have to be deleted in the case of a version change of the modeled application. Permitted information are filters and elements. The information can be combined in any way.

INFO entry	Deleted files	Content of the files
filters	ft_filters.xml	All filters in the application.
elements	et_elements.xml eb_elementsinlists.xml li_<listid> lm_Element_Lists.xml	All cached elements that are assigned to the application and all element lists in the application.

INFO entry

Deleted files

Content of the files

filters

ft_filters.xml

All filters in the application.

elements

et_elements.xml

eb_elementsinlists.xml

li_<listid>

lm_Element_Lists.xml

All cached elements that are assigned to the application and all element lists in the application.

For example, a master configuration file in XML format:

<?xml version="1.0" encoding="UTF-8"?>
<System name="My Local System">
<Appl name="My Application" conf="local:C:\Models\MyApplication.model" version="1.0" info="">
<Property propertyID="PROP_UserRole" value="ADMIN" />
<Property propertyID="PROP_Environment" value="TEST" />
</Appl>
<Appl name="SCLM Application" conf="MVS:HLQ.APPLS.MODELS(SCLMPROD)"
version="2.1" info="" />
</System>

For example, a master configuration file in flat format:

System: My System
*
* PDS EXPLORER EXAMPLE APPLICATION
*
User:
* application name
Appl : PDS Explorer
* location of the application configuration file
Conf : mvs:'hlq.ZSERVER.XML(PDSECONF)'
* application version number
Version: 1.1
* process information

Master configuration from OS command

A local master configuration can be returned dynamically by an operating system command. The command which could, for example, execute a script file to return the configuration must be specified with the teamdeveloper.masterconfig Java system variable. See Setting Java System Variables for more information.

When setting the Java system variable in the eclipse.ini file, you must ensure that the Eclipse instance is stopped and restarted before the change can take effect.

The value of the variable must contain an operating system command, which returns a complete master configuration file, in XML format, to standard out when executed. If the script is a Windows .bat file, it should start with @echo off so that only the master configuration file lines are written to standard out.

For example (Windows):

cmd.exe /c type %HOMEDRIVE%%HOMEPATH%\localmasterconfig.xml
cmd.exe /c H:\batfiles\MasterConfiguration.bat
