Relationship: Filter Has Filter Criterion

The Filter has Filter Criterion relationship references properties that are interpreted as filter criteria. The filter criteria are used as input fields for the corresponding filter dialog box.

When you execute an action on the corresponding filter, the filter criteria values and/or the property values of the referenced properties can be used as input parameters.

As a rule, a filter type has at least one action that returns an element list on the basis of the filter criteria.

Attribute	Type	Description
TargetID *	Property	Reference to a property that should be used as a filter criterion.
Label [O]	String	Display text of the input field in the Filter dialog box.
Mandatory	Boolean	Specifies whether the criterion is mandatory for the creation of a filter. If true, the user must specify a value in the generated input field in the Filter dialog box. Mandatory filter criteria are marked with the symbol * besides the label of the input fields. Note: A space value is a valid mandatory input. The default value is `true`.
Category [O]	String	Group the filter criterion in the Filter dialog box. See Input Dialog for more information.
Generic	Boolean	Specifies whether wildcard characters are permitted as filter criterion value. See Application Options for more information. The default value is `false`.

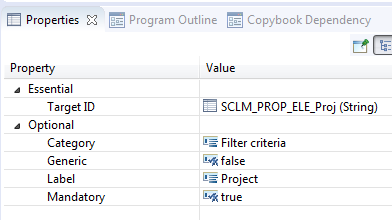

Example

Attribute	Value	Description
Essential:
Target ID	Reference to the property SCLM_PROP_ELE_Proj	The first value entered in the filter dialog is passed to the property SCLM_PROP_ELE_Proj.
Optional:
Category	Filter criteria	This filter criterion is displayed within the group named 'Filter criteria' in the filter dialog.
Generic	false	Generic input is not allowed for this filter criterion.
Label	Project	The label for this filter criterion in the filter dialog is 'Project'.
Mandatory	true	The filter dialog requires a non-empty input under this filter criterion.
