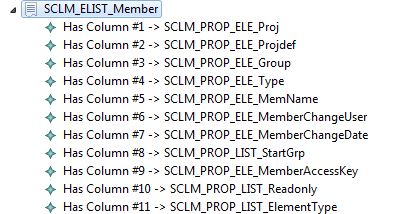

Relationship: Element List Has Column Property

You can specify element list structure columns in the Element List has Column Property relationship. Any of the element's property values matching table column's properties display in the table. The modeled structure of the column definition (such as position and visibility) is only a user default. Columns can be individually interchanged, displayed or hidden using a Column Modeling dialog box.

As a rule, most properties referenced here are also assigned to the element, so they are also properties for the affected element types.

Properties that are only relevant in the context of the element list can also be referenced. They cannot be directly assigned to an element type, as:

The property does not logically match the element type.
The property values can differ for the same element in different lists.

Attribute	Type	Description
TargetID *	Property	References to properties. The property values are displayed in the column of the element list at run time. You can combine several property values within one table column. Click in the Target ID value field, a ... button is displayed. Click ... to open a dialog displaying a list of all the properties that can be selected.
Label [O]	String	Display name and/or column title for the table column. If no label is stated, the first referenced property's label is used.
Visible [O]	Boolean	Indicates whether the table column is displayed. Columns can be displayed or hidden by the user. The default value is `true`.
Width [O]	Integer	The column width in the table view in pixels.
Delimiter [O]	String	Specifies the delimiter between property values in a table column if more than one property is modeled for the column.

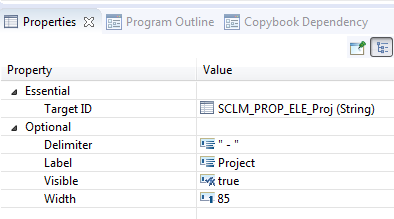

Example

Attribute	Value	Description
Essential:
Target ID	Reference to the property SCLM_PROP_ELE_Proj	The content of the column is the value returned under the property SCLM_PROP_ELE_Proj (the SCLM project name).
Optional:
Label	Project	The column's header is 'Project'.
Visible	true	The column is visible by default.
Width	85	The column's width is 85 pixels.

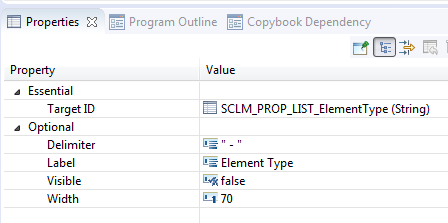

Attribute	Value	Description
Essential:
Target ID	Reference to the property SCLM_PROP_LIST_ElementType	The content of the column is the value returned under the property SCLM_PROP_LIST_ElementType (the element type property of the SCLM model).
Optional:
Label	Element Type	The column's header is Element Type.
Visible	false	The column is not visible by default. The user can make the column visible by the Table Results view's Configure columns dialog.
Width	85	The column's width is 85 pixels.
