Embedded Rumba Mainframe Display View

To detach and leave the view floating, right-click the tab of the view, and click Detach. The IDE preserves the last state, size, and position of the window between debug sessions.

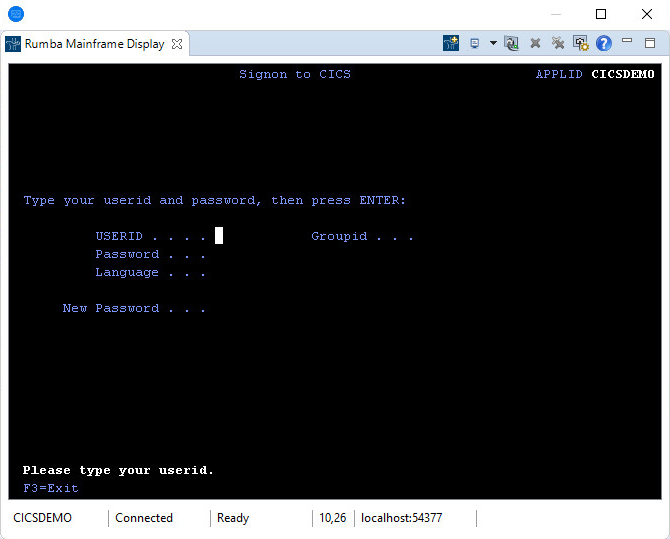

The Embedded Rumba Mainframe Display view includes:

• A toolbar with the following buttons:
  • New Rumba Mainframe Display - enables you to specify connection details and connect the display to an enterprise server.
  • Show Terminal - enables you to view the active connections and choose to display one of them.
  • Connect and Disconnect - use this to connect or disconnect the display to the server in the current connection.
  • Disconnect and Close - disconnects the display from the server and closes the current connection.
  • Disconnect and Close All - disconnects the server from the current connection and also closes all connections.
  • Properties - opens the TN3270 Connection Properties dialog box, showing the properties of the connection for that view.
  • Help - opens the Help for the embedded mainframe display.
• Emulation screen - the main area of the view.
• Status bar - includes the following indicators:
  • Terminal name - shows the name of the current connection.
  • Connection status - show the current state of the connection
  • Status field - displays general Rumba+ Desktop software status information.
  • Cursor coordinates - displays the row and column position of the cursor.
  • Connection properties - displays the properties of the connection in the current view.

Follow the links below for details on how to use the embedded Rumba Mainframe Display view.
