Relationship: Action Has Tool
The relationships of an action descriptor to the tool descriptors specifies the tool sequence of an action. A tool sequence can consist of different tool types. For example, an action starts with an AWM dialog requesting you to input data, followed by some tools to process the input data and end with an AWM dialog displaying some output data. The tool sequence is terminated as soon as a tool returns a return code higher than the permitted return code or when the user cancels an input dialog. See Application Options for more information on how to specify the maximum permitted return code.
| Attribute | Type | Description |
|---|---|---|
| TargetID * | ToolDescriptor | The tool descriptor that should be referenced by this relationship. |
| Context Name | String | The name of an execution context previously created using
Tool has Named Context. The tool is executed with the referenced context.
By default, all tools are executed with the main context of the action. |
| Parameter_Override [O] | Parameter_Override | Relationship to an input parameter of the referenced tool descriptor. This makes adaptations to the input parameters possible for one action, so that the re-usability of tool descriptors is increased. See Parameter Override for more information. |
| Enabled Condition [O] | Enabled_Condition | Relationship to a tool enabled condition which lets you specify the conditions which are checked at run time and must be true to call the tool. See Enabled/Visible Condition for more information on how to specify an enabled condition. |
| Named Context | Named_Context | Relationship to an execution context to be created from the tool output which can be used in subsequent tools of this action. |
Examples

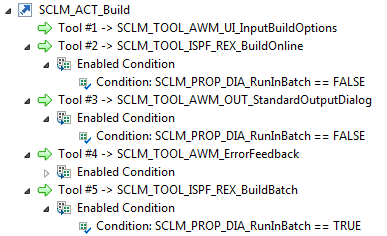

For example, the following displays several "Action Has Tool" relationships with enabled conditions:
The enabled conditions are all dependent on the property SCLM_PROP_DIA_RunInBatch which is set as user input by the first tool of the action. Depending on the value of the SCLM_PROP_DIA_RunInBatch property, different tools of the action are executed.
For example, the following displays the use of the Parameter_Override relationship in an "Action Has Tool" relationship:

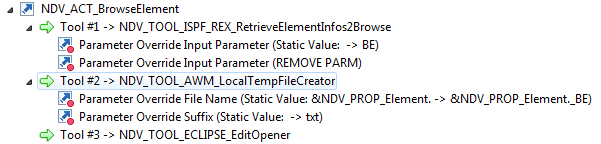

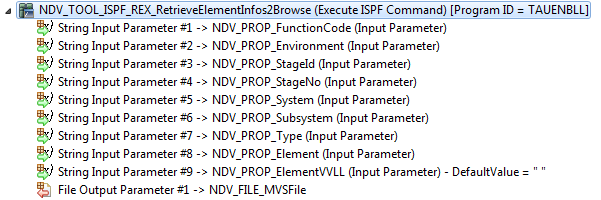

For example, the Endevor model contains a general tool which retrieves the information for several browse actions. One parameter of the tool is the function code which specifies which information should be retrieved. This parameter is overwritten by the appropriate static value in each "Action Has Tool" relationship referencing the NDV_TOOL_ISPF_REX_RetrieveElementInfos2Browse tool making use of a "Parameter Override" relationship. In this example, the input parameter NDV_PROP_ElementVVLL is removed from the parameters being passed to the tool as it is not relevant to an element browse action. It is only relevant for an element version browse action:
