Preparing the Jump Host Virtual Machine

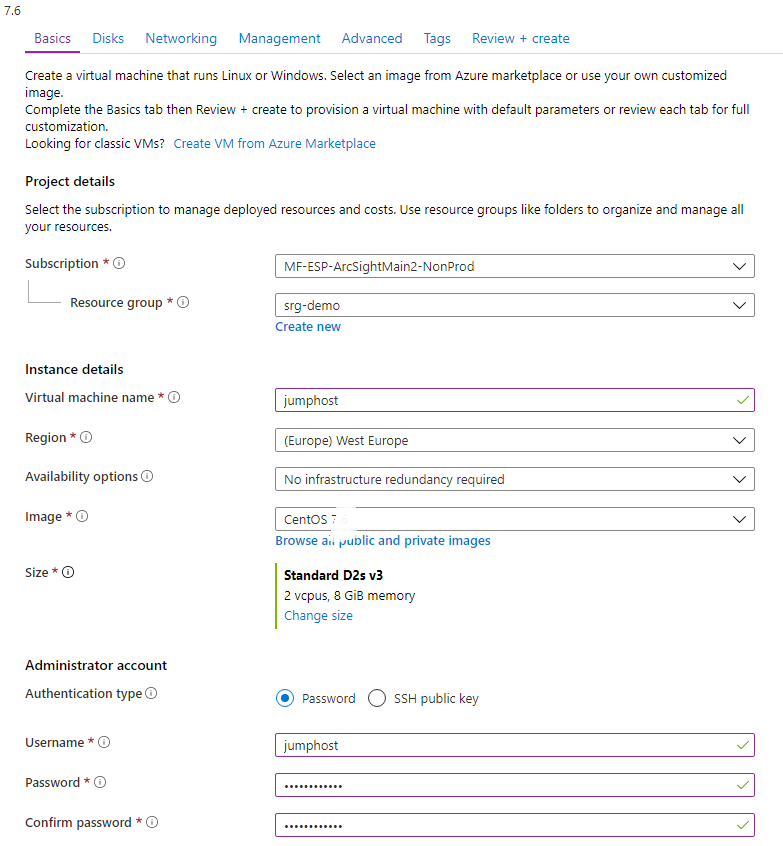

1. Create resource of type CentOS-based and specify these values:

   • For Resource group, use the resource group you created for the ACR.
   • In Virtual machine name, specify a VM name.
   • For Size, leave at the default value.

   • Set the Authentication type to your preferences and supply the Administration account details accordingly. In our examples, we use the username/password authentication.





2. Click Next: Disks. No actions need to be taken on this page. Click Next: Networking, and then specify the following values:

   • For Virtual network, select the virtual network you created previously (its name has the format demo-vnet).
   • For Subnet, select jumphost-subnet.

   • For NIC network security group, select Basic and Allow SSH port to connect.

     For optimal security, remove this rule when the jump host is not needed, or add more strict rules such IP filtering.







3. Click Review + create.
4. After validation, click Create to start the deployment.
5. When the deployment completes, browse to the VM overview and note the jump host's public IP address.

Required Permissions:create security groups, network interfaces, public IPs, and CentOS-based virtual machines

1. Set your main resource group name to an environment variable:


   RESOURCE_GROUP=<your resource group name>

   For example:


   RESOURCE_GROUP=srg-demo

2. Create a network security group for the jump host by running the following command:


   az network nsg create -g $RESOURCE_GROUP -n <your jumphost nsg name>

   For example:


   az network nsg create -g $RESOURCE_GROUP -n jumphost-nsg

3. (Conditional) Open the SSH port by running the following command:

   az network nsg rule create -g $RESOURCE_GROUP -n ssh --nsg-nam <your jumphost nsg> --priority 1000 --destination-port-ranges 22

   For example:


   az network nsg rule create -g $RESOURCE_GROUP -n ssh --nsg-nam jumphost-nsg --priority 1000 --destination-port-ranges 22

   Keep in mind the security risks of opening ports to the Internet and consider using a VPN, restricting access to the allowed source IP address, or limiting the amount of time that this port remains available.

4. (Conditional) Prepare the jump host public IP:

   az network public-ip create -n <your jumphost PublicIP> -g $RESOURCE_GROUP --allocation-method "Static" --sku "Standard"

   For example:


   az network public-ip create -n jumphost-PublicIP -g $RESOURCE_GROUP --allocation-method "Static" --sku "Standard"

5. Get the subnet ID and store it in an environment variable for later usage.


   SUBNET_ID=$(az network vnet list -g $RESOURCE_GROUP | jq -r '.[] | select(.name == "<your vnet name>") | .subnets[] | select(.name == "<your jumphost subnet>") | .id')

   For example:


   SUBNET_ID=$(az network vnet list -g $RESOURCE_GROUP | jq -r '.[] | select(.name == "demo-vnet") | .subnets[] | select(.name == "jumphost-subnet") | .id')

6. (Conditional) Create a network interface in your resource group with public IP and network security group already created, by running the following command:

   az network nic create --name <"your jumphost VMNic"> --resource-group $RESOURCE_GROUP --public-ip-address <"your jumphost PublicIP"> --ip-forwarding  "true" --network-security-group <"your jumphost-nsg"> --subnet $SUBNET_ID

   For example:

   az network nic create --name "jumphost-VMNic" --resource-group $RESOURCE_GROUP --public-ip-address "jumphost-PublicIP" --ip-forwarding  "true" --network-security-group "jumphost-nsg" --subnet $SUBNET_ID

7. (Conditional) Create the jump host VM by running the following command:


   az vm create --name <"your jumphost"> --resource-group $RESOURCE_GROUP --image <"Publisher:Offer:Sku:latest"> --size <"Standard_D4s_v3"> --public-ip-address-allocation "static" --nics <"your jumphost VMNic"> --admin-username <your jumphost admin username>  --admin-password '<your jumhost admin password>d@!123'

   Where:

   • Size might be a smaller value. To get a list of supported sizes, run the command:


     az vm list-sizes -l <LOCATION> | jq ".[] | .name"

   • Image can be any supported CentOS. To get a list of CentOS images, run the command:


     az vm image list -l <LOCATION> -f CentOS --all

   For example:

   az vm create --name "jumphost" --resource-group $RESOURCE_GROUP --image "OpenLogic:CentOS:7_9:latest" --size "Standard_D4s_v3" --public-ip-address-allocation "static" --nics "jumphost-VMNic" --admin-username jumphost  --admin-password 'myStrongPassword@!123'

   Example result:

   {- Finished ..
   "fqdns": "",
   "id": "/subscriptions/af379ae8-90b3-4368-8fe7-b6a55ab17720/resourceGroups/srg-demo/providers/Microsoft.Compute/virtualMachines/jumphost",
   "location": "westeurope",
   "macAddress": "00-0D-3A-BD-08-42",
   "powerState": "VM running",
   "privateIpAddress": "10.0.2.4",
   "publicIpAddress": "51.124.17.183",
   "resourceGroup": "srg-demo",
   "zones": ""
   }

Use the VM Public IP address to permit SSH access to the jump host from outside. (The SSH port needs to be open if access is permitted from outside.)

1. Using the VM's public IP, SSH to the jump host VM and become root.
2. Run the following commands:


   curl -LO https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl
   chmod 755 kubectl
   mv kubectl /bin
   yum install epel-release -y
   yum install jq -y

3. Install the Azure client for CentOS by running these commands:


   rpm --import https://packages.microsoft.com/keys/microsoft.asc
   sh -c 'echo -e "[azure-cli]\nname=Azure CLI\nbaseurl=https://packages.microsoft.com/yumrepos/azure-cli\nenabled=1\ngpgcheck=1\ngpgkey=https://packages.microsoft.com/keys/microsoft.asc" > /etc/yum.repos.d/azure-cli.repo'
   yum install azure-cli

4. Log in to your Azure account and follow the console instructions by running:


   az login

5. Get your Kubernetes cluster credentials by running the following command:


   az aks get-credentials --resource-group <your resource group name> --name <your kubernetes resource name>

   For example:


   az aks get-credentials --resource-group srg-demo --name srg-demo-aks

6. Check if kubectl can access the cluster by running:


   kubectl get nodes

   Example output:

   NAME                                STATUS   ROLES   AGE    VERSION

   aks-agentpool-36457641-vmss000000   Ready    agent   137m   v1.13.11

   aks-agentpool-36457641-vmss000001   Ready    agent   137m   v1.13.11

   aks-agentpool-36457641-vmss000002   Ready    agent   137m   v1.13.11

Since RDP is required for your jump host, you must complete the following configuration steps:

• The installation of xRDP
• Installation of a preferred desktop environment (choice of XFCE, MATE, or GNOME)
• Opening of an RDP port on the jump host network security group (NSG)

To configure RDP on your jump host:

1. Connect to the jump host and become root.
2. Install and enable xrdp. Run these commands:


   yum install -y epel-release
   yum install -y xrdp
   systemctl enable xrdp
   systemctl start xrdp

3. Ensure that the firewall is running. Once running, open RDP port 3389/tcp by running these commands:


   firewall-cmd --add-port=3389/tcp --permanent
   firewall-cmd --reload

4. Install your preferred desktop environment (XFCE, MATE or GNOME). This example uses MATE and your syntax may differ. Run these commands:


   yum install -y epel-release
   yum groupinstall "Server with GUI" -y
   yum groupinstall -y "MATE Desktop"

5. Wait for the installation to complete, then reboot the jump host.
6. Connect to the jump host and stay as a jump host user.
7. Create the Xclients file for the user, which will be used for user logins. Run these commands:


   echo "mate-session" > ~/.Xclients
   chmod a+x ~/.Xclients

8. Do one of the following:

   1. On the Azure Portal, open the RDP port on the jump host network security group (NSG), then proceed to Step 9, OR,
   2. Run the following command (after which, the procedure is complete)


      az network nsg rule create -g <RESOURCE GROUP> -n rdp --nsg-nam jumphost-nsg --priority 1001 --destination-port-ranges 3389

      For example:


      az network nsg rule create -g srg-demo -n rdp --nsg-nam jumphost-nsg --priority 1001 --destination-port-ranges 3389

   Find the jump host network security group (NSG) in your resource group. In our example, the NSG is called jumphost-NSG
9. In Settings, click Inbound security rules.
10. Click Add and then specify values for these settings:
    • In Name, specify a name for the NSG.
    • In Destination port ranges, specify 3389.
