Integrating SOAR with Intelligence

Micro Focus ArcSight Intelligence uses unsupervised machine learning to calculate probabilistic risk assessments based on behavioral analytics from millions of events, ultimately generating a short list of high value targets to allow security teams to detect, investigate, and respond to threats that might hide in the enterprise before any case occurs.

SOAR has the following integration capabilities with Intelligence:

Use Cases

Use Case #1: Prioritizing Cases

SOAR is integrated with Intelligence, to help prioritization and investigation of cases as well as remediation of cases. When an alert is received, a new case is created in the Case Management Service Desk of SOAR. SOAR then automatically checks the risk scores of entities and prioritizes the case based on these risk scores. Get Entity Details enrichment results return latest 1000 records maximum.

Use Case #2: Mitigating Account Compromise

SOAR ingests anomaly data from Intelligence and creates case tickets in the Case Management Service Desk. With its broad integration portfolio, orchestration, and automation capabilities, SOAR investigates, ascertains the case, and takes necessary actions to prevent the compromise.

The bidirectional integration of Intelligence and SOAR requires configuration at both the capabilities.

Configuration

Prerequisites

Configuring ArcSight Intelligence

No specific configuration is needed on Intelligence.

Configuring SOAR

  1. Click Configuration > Credentials > Create Credential.

  2. If the use.basic.authentication configuration parameter value is False, then get the Client id and Client secret from Intelligence to ensure that the Intelligence Alert Source and Intelligence Integration work as expected.

    Note: The default value of use.basic.authentication parameter is False.

    To get the Client ID and Client Secret for Micro Focus Intelligence open a command prompt and:

    1. Specify the name of the server on which Intelligence works.

    2. Run the following command to get Client ID and Client Secret from Intelligence:

      osp-client-id and osp-client-secret : kubectl get secret osp-secret -n arcsight-installer-tyoib -o yaml

      The output is displayed in the following format:

      data:
osp-client-id: NTZjODkyYWE3NDMzZThiOTYzZGVkMjE5ZGIzODU3ZDg=
osp-client-secret:
ZjRiZDUzODBiZjQ2NTY5MWQ4NDAzMTFhZTJmMjY1ZGJlZGRjOWU0NDhlZmE3ZDhjN2Q5YzJlY2VjMDkzMmExNw==

    3. Run the following command to decode the Client ID and Client Secret:

      echo 'NTZjODkyYWE3NDMzZThiOTYzZGVkMjE5ZGIzODU3ZDg=' | base64 --decode
echo 'ZjRiZDUzODBiZjQ2NTY5MWQ4NDAzMTFhZTJmMjY1ZGJlZGRjOWU0NDhlZmE3ZDhjN2Q5YzJlY2VjMDkzMmExNw==' | base64 --decode

    4. Run the following command to add the Client ID to the Alert Source / Integration configuration on Intelligence.

      # Client id that defined in OSP
client.id=id

  3. Specify the following parameter values in the Credential Editor:

      Parameter

      Value

      Type

      Internal Credential

      Name

      Display name of credential set (For example, Intelligence Credentials)
      Username

      Name of the SOAR user created on Intelligence.

      Password

      Password of the SOAR user created on Intelligence.

      Private Key

      Client secret that has been defined in OSP

Configuring Intelligence as an Alert Source

  1. Click Configuration > Integrations > Create Alert Source.

  2. Specify the following parameter values in the Configuration form:

    Parameter

    Value

    Name

    Display name of Intelligence Alert Source on SOAR.

    Type

    Micro Focus ArcSight Intelligence.

    Address

    Address of the Intelligence server (the format must be https://172.16.11.9).

    Configuration

    Specify the following configuration parameters:

    tenant.id=
# ID of the proxy integration to use when connecting to current source.
# If not provided, ArcSight SOAR will try to use a direct connection.
#proxy.id=123
# configure how far (in minutes) into the past this enrichment will look.
#cache.reusing.duration=20
# Base path of the Micro Focus Intelligence. SOAR adds it to end of the URL to access Micro Focus Intelligence.
interset.context.path=/interset
# Client id that defined in OSP
client.id=id
    Note: By default,Intelligence uses 0 for tenant id. However, Intelligence - SOAR integration supports different tenants.

    Credential

    Name of the credential set you have created (For example, Micro Focus

    ArcSight Credentials)

    Trust Invalid SSL Certificates

    Select this if Web UI’s certificate is self-signed or is not recognized by browsers

    Visible Alert Fields

    You might define the alarm fields that will be displayed on the Case Management Service Desk

  3. Click Save to complete the integration.

  4. Click Test to test the integration.

Configuring Intelligence as Integration

  1. Click Configuration > Integrations > Create Integration.

  2. Specify the following parameter values in the Configuration form:

    Parameter

    Value

    Name

    Display name of Intelligence integration on SOAR.

    Type

    Micro Focus ArcSight Intelligence.

    Address

    Address of the Intelligence server (the format must be https://172.16.11.9).

    Configuration

    Specify the following configuration parameters:

    tenant.id=
# ID of the proxy integration to use when connecting to current source.
# If not provided, ArcSight SOAR will try to use a direct connection.
#proxy.id=123
# configure how far (in minutes) into the past this enrichment will look.
#cache.reusing.duration=20
# Base path of the Micro Focus Intelligence. SOAR adds it to end of the URL to access Micro Focus Intelligence.
interset.context.path=/interset
# Client id that defined in OSP
client.id=id

    Credential

    Name of the credential set you have created (For example, Micro Focus

    ArcSight Credentials)

    Trust Invalid SSL Certificates

    Select this if Web UI’s certificate is self-signed or is not recognized by browsers

    Require Approval From

    Select user(s) from the list to request for approval before executing actions on this integration. Because SOAR only executes enrichments on Intelligence, leave it empty.

    Notify

    Select user(s) from the list to notify when SOAR performs an action on this integration. Because SOAR only executes enrichments on Intelligence, leave it empty.

  3. Click Save to complete the integration.

  4. Click Test to test the integration.

Additional Notes

Capabilities

  1. Get Details

    Enrichment capability to get the risk score of a given entity and related alert details.

    The following table presents the Get Details capability details:

    Input Parameter Description Type Scope Rescticted (Yes/No) Required (Yes/No)
    Integration Name of the third party integration. Integration N/A Yes
    Entity Entity to be queried on ArcSight Intelligence.

    Network Address

    Host

    File Name URL

    		Yes Yes
    Do not use cache SOAR does not use cached results if this box is checked. Checkbox N/A No

    Output:

    Case Scope:

    Action Type Category/ Value
    Add Scope Item Property Integer Micro Focus Intelligence Entity Risk
    Add Scope Item Property TEXT Micro Focus Intelligence Entity Hash
    Add Scope Item Property TEXT Micro Focus Intelligence Entity Type

    Human Readable Output:

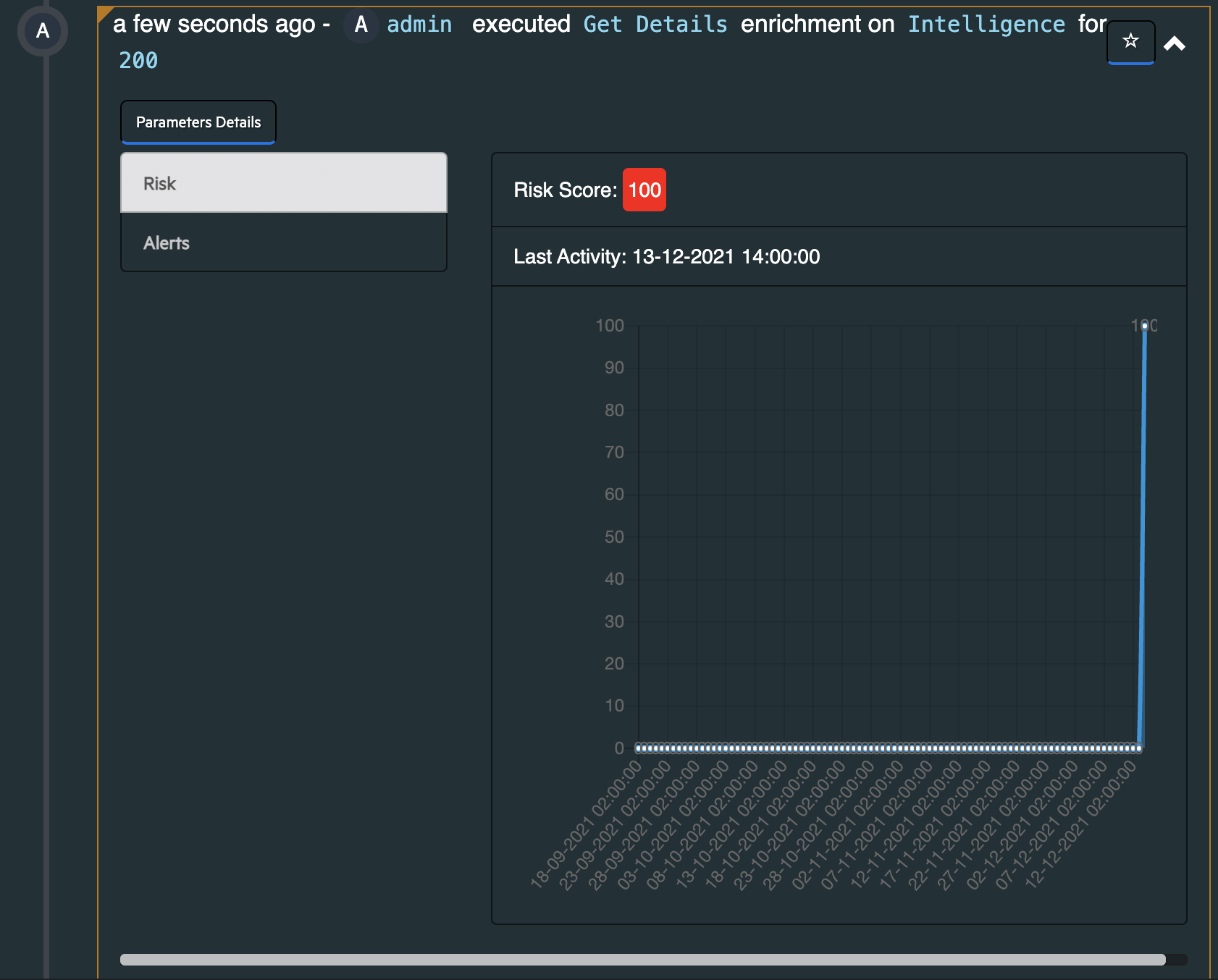

    1. Risk tab:

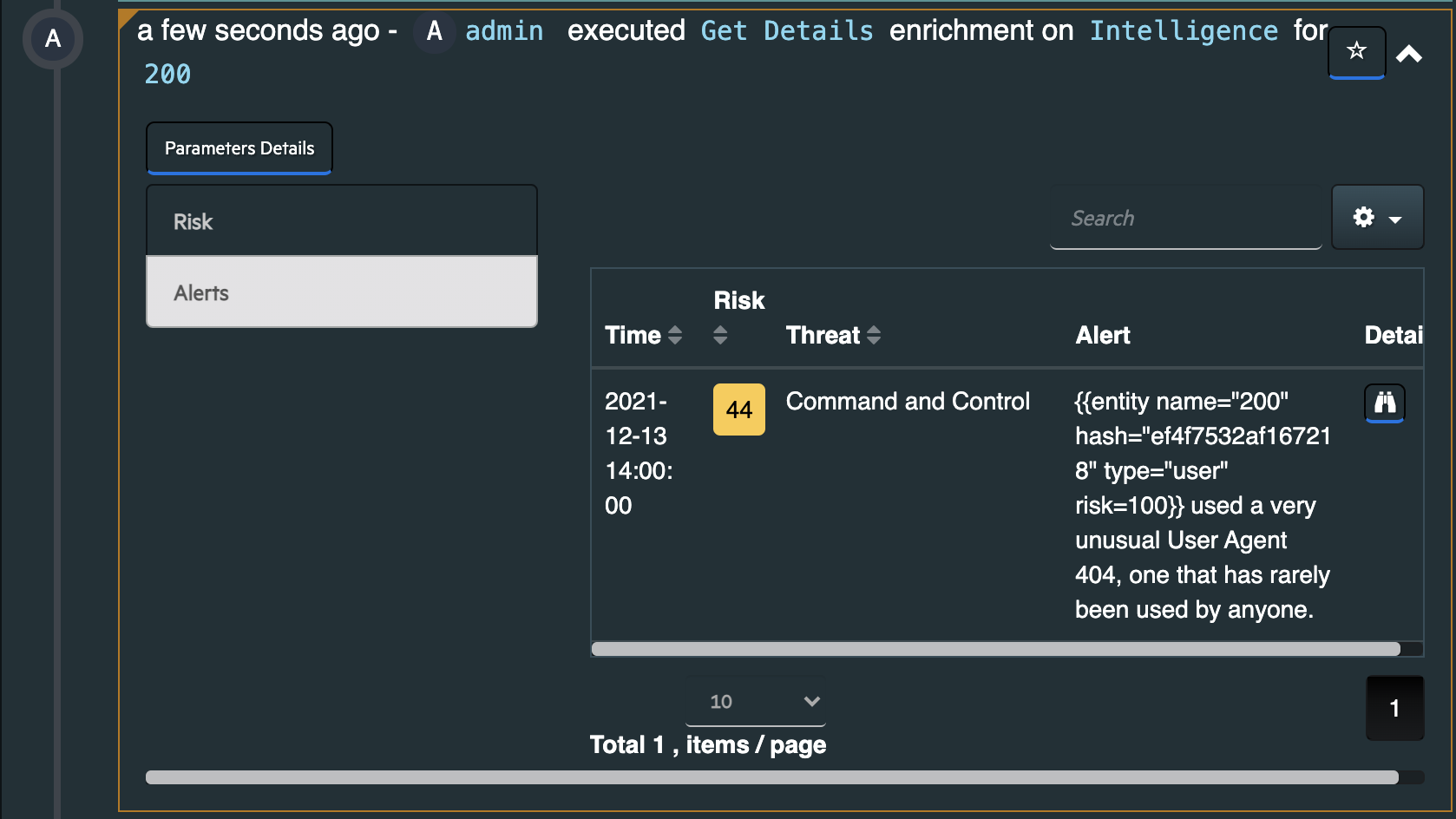

    2. Alerts tab:
