Starting the Bastion Instance

  1. Using the Find Services search tool, locate and browse to the EC2 Dashboard.

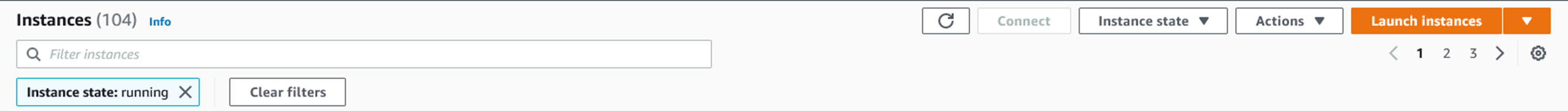

  2. In the left navigation pane, under INSTANCES, click Instances.
  3. On the Instances management dialog, click Launch Instance to start the wizard.

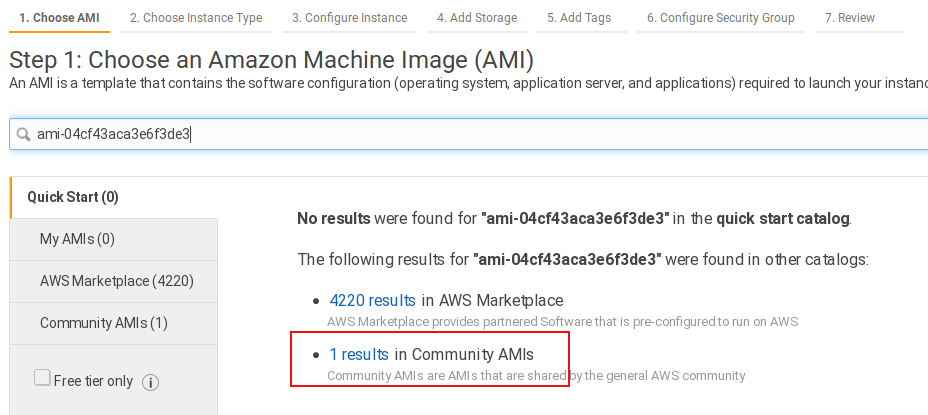

  1. On the Step 1: Choose an AMI page, in the search box, specify your AMI ID (from your AWS worksheet) and press Enter. The page displays a single result in Community AMIs.

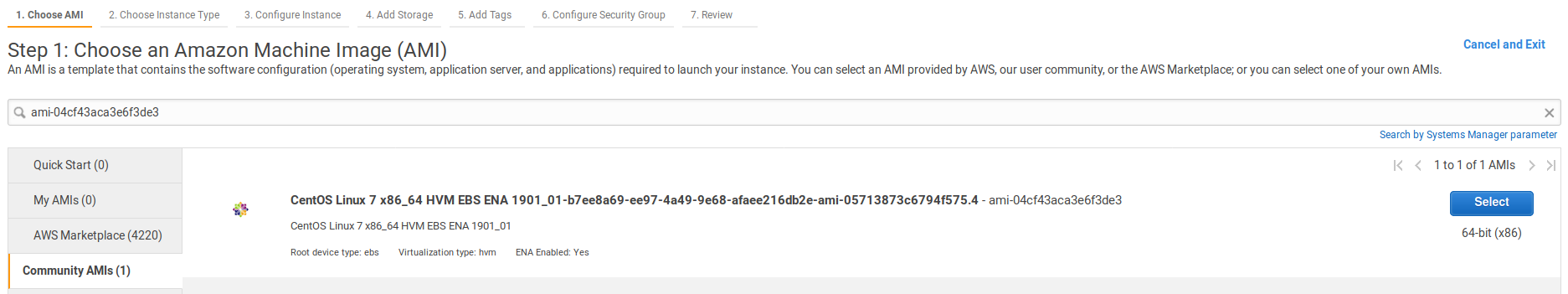

  1. Click the link for 1 results in Community AMIs. The selected OS is displayed.
  2. Click Select.

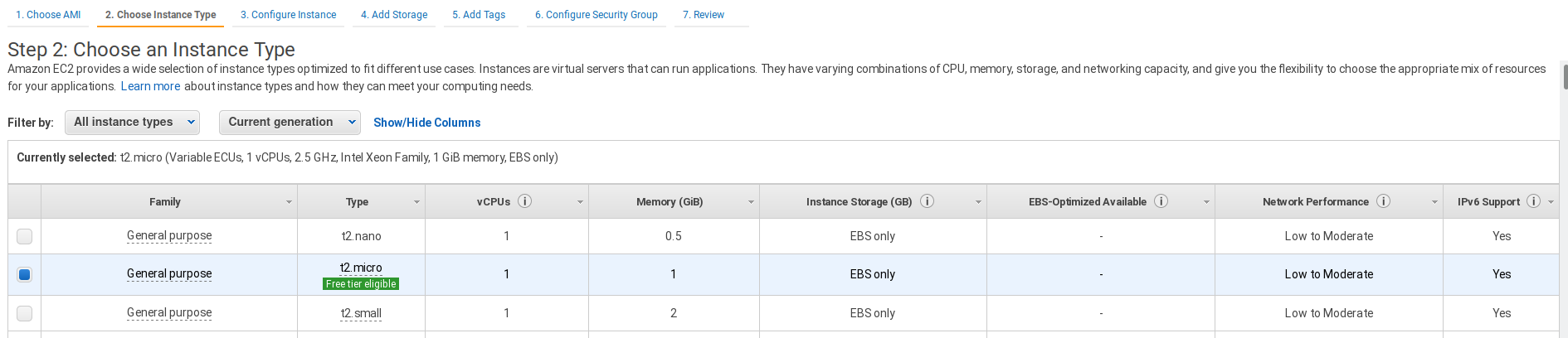

  1. On the Step 2: Choose an Instance Type page, on the Instance Type list, search for and select your own instance type (use the browser search function if needed). Then, click Next: Configure Instance Details.

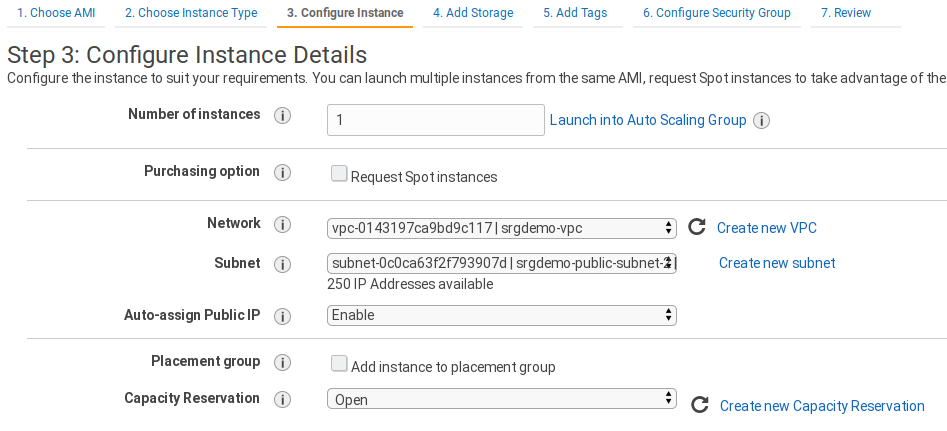

  1. On the Step 3: Configure Instance Details page, specify these values for the following settings:
    • Network: Choose your VPC.
    • Subnet: Choose one of your three public subnets.
    • Auto-assign Public IP: Enable this value.
  2. Click Next: Add Storage .

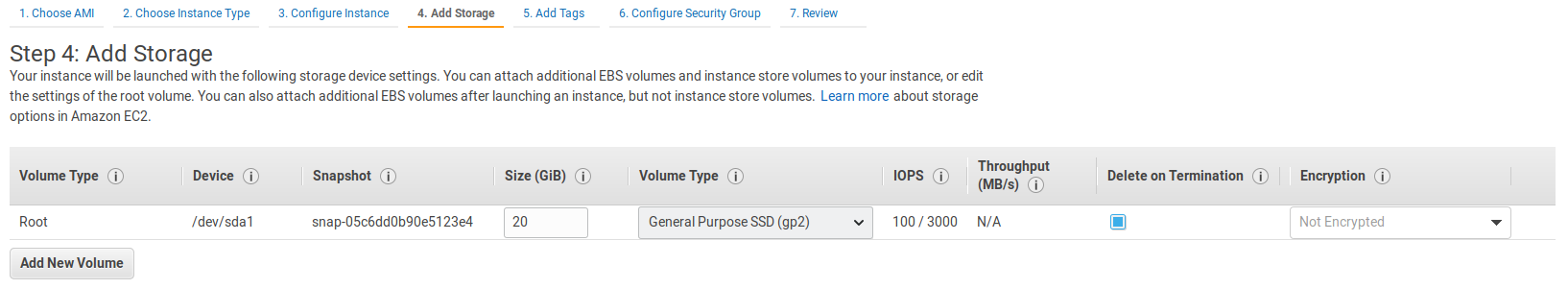

  1. On the Step 4: Add Storage page, set the root volume size according to your previously-decided needs. In this example, we assume that we will be using it only to upload product images, so we will set it to 20 GB.

  1. Enable Delete on Termination.
  2. Click Next: Add Tags.

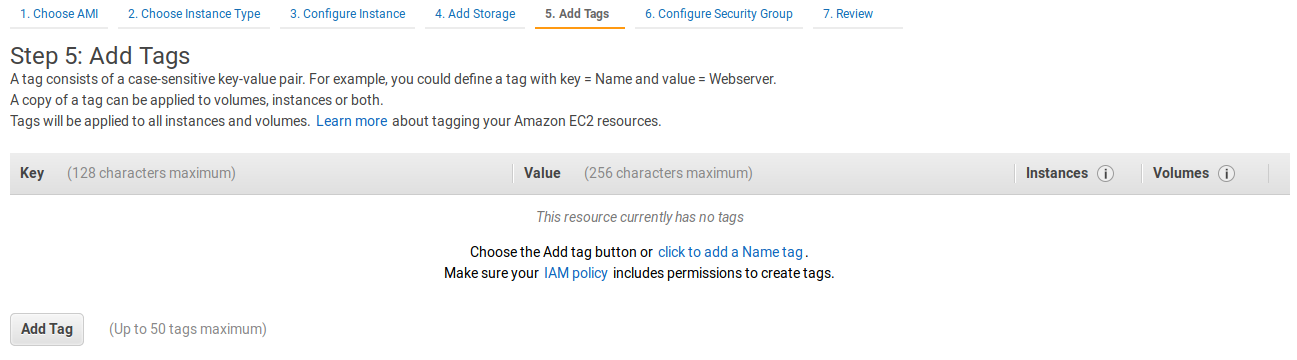

  3. On the Step 5: Add Tags page, click Add Tag.
  4. Specify and save a tag called Name with the value of your bastion name (for example, srgdemo-bastion.)
  5. Optionally, you can add other tags as needed.
  6. Click Next: Configure Security Group.

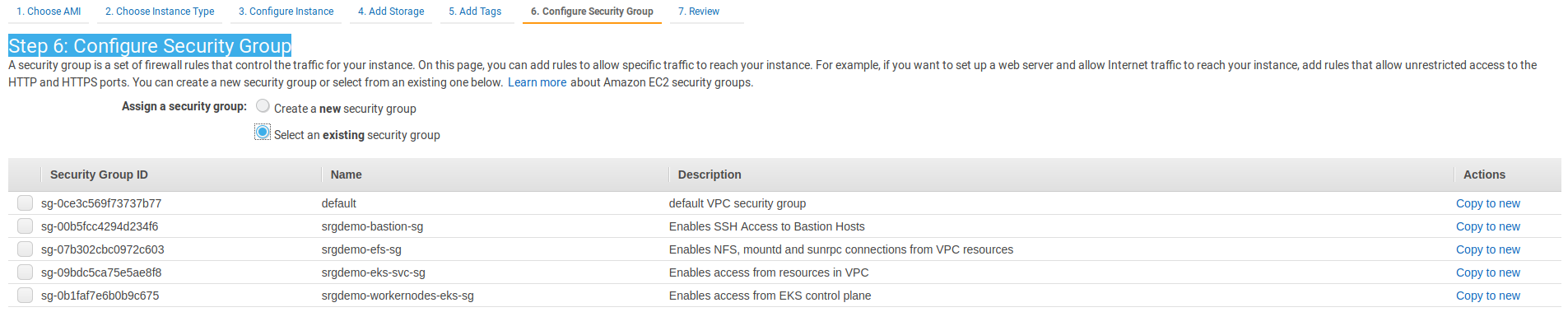

  1. On the Step 6: Configure Security Group page, under Assign a security group, choose Select an existing security group.
  2. The list shows all security groups associated with your VPC. Select both the Bastion security group and Intra VPC security group. (Choose by name or ID from your AWS worksheet.)
  3. Click Review and Launch.

  1. On the Step 7: Review Instance and Launch page, review all parameters for correctness and fix if necessary. Then click Launch.

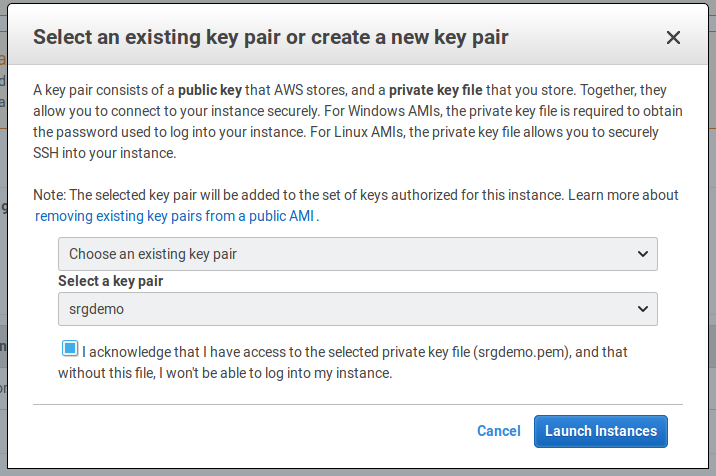

  2. On the Select an existing key pair... dialog, pick Choose an existing key pair from the drop-down, then select your previously-created key pair.
Important! Confirm that you have the private part of your key pair accessible on your local host. Without the private part, your bastion will not be accessible through SSH.

  1. Click Launch Instances. The instance is launched and displayed.

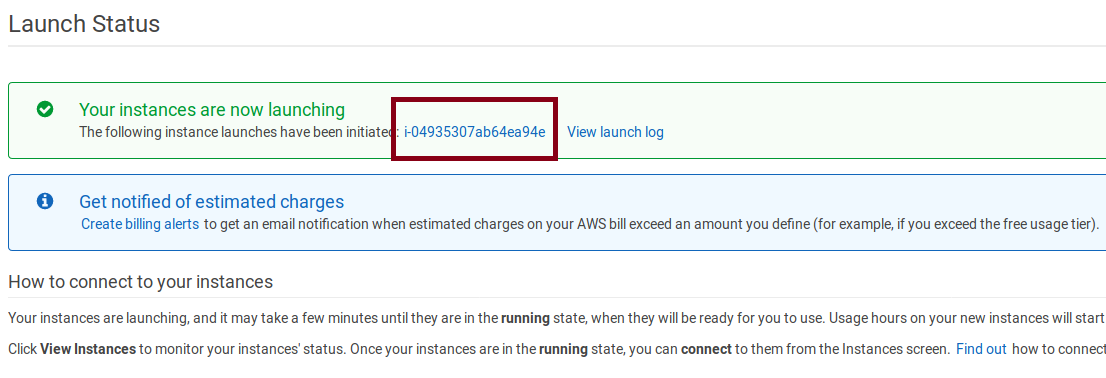

  1. From on the Launch Status page, from the green box, copy your instance ID to your AWS worksheet under Notes.
  2. Click View Instances to return to the Instances management page.
  1. Run the following command:
    aws ec2 run-instances \
    --image-id <Image Id> --count 1 \
    --instance-type <Instance type> \
    --key-name <Key pair name> \
    --security-group-ids <security group Ids> \
    --subnet-id <public subnet Id> \
    --block-device-mappings <device mapping parameters> \
    --tag-specifications 'ResourceType=instance,Tags=[{Key=Name,Value=<bastion instance name>}]' 'ResourceType=volume,Tags=[{Key=Name,Value=<bastion instance volume name>}]' \
    --associate-public-ip-address | jq '.Instances[].InstanceId'

Where:

<Image Id>: Your AMI ID.

<Instance type>: Your bastion type.

<Key pair name>: Name of the key pair previously created in SSH Keypair.

<Security group IDs>: IDs of the two security groups created by your AWS infrastructure administrators. Add both the Bastion Security group Id and Intra VPC Security group ID; separate entries with a single space character.

<public subnet Id>: ID of one of the three public subnets created by your AWS infrastructure administrators.

<Device mapping parameters>: See the example; used for changing root volume size. For more information about parameters and values, please run:

aws ec2 run-instances help.

<bastion instance name>: Name assigned to the bastion instance for easier identification.

<bastion instance volume name>: Name for the storage volume attached to the current bastion instance.

Example:

aws ec2 run-instances --image-id ami-04cf43aca3e6f3de3 \

--count 1 --instance-type t2.medium \

--key-name srgdemo --security-group-ids sg-00b5fcc4294d234f6 sg-0ce3c569f73737b77 \

--subnet-id subnet-0c0ca63f2f793907d \

--block-device-mappings DeviceName=/dev/sda1,Ebs={VolumeSize=10} \

--tag-specifications 'ResourceType=instance,Tags=[{Key=Name,Value=srgdemo-bastion}]' 'ResourceType=volume,Tags=[{Key=Name,Value=srgdemo-bastion-volume}]' \

--associate-public-ip-address | jq '.Instances[].InstanceId'

  1. The command returns an instance ID (for example, i-06773a3ef6acd24f0). Record your instance ID to the AWS worksheet.
  2. Check the instance status by running the following command:
    aws ec2 describe-instances \
    --instance-ids <Instance Id> | jq '.Reservations[].Instances[].State'

Example output (JSON):

{
   "Code":16,
   "Name":"running"
}
  1. Repeat the check until the result shows Name: running. For example:
    aws ec2 describe-instances \
    --instance-ids i-06773a3ef6acd24f0 | jq '.Reservations[].Instances[].State'
  2. For easier identification of your bastion instance, tag it with a name by running the following command:
    aws ec2 create-tags --resources <Instance Id> \
    --tags Key=Name,Value=<tag value>

For example:

aws ec2 create-tags \
--resources i-06773a3ef6acd24f0 \
--tag Key=Name,Value=srgdemo-bastion

Next Step: Retrieving the Bastion Instance IP Address
