Using Column Flip Limit to Format Grid View Printouts

For printing tables from Grid Views (channels, lists, and so forth), you can configure the Column Flip Limit in the Console Preferences.

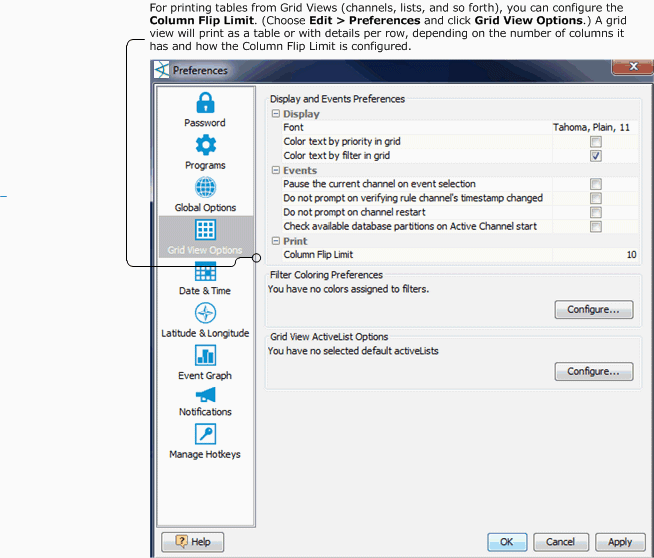

Choose Edit > Preferences, and click Grid View Options. The default is 10 columns.

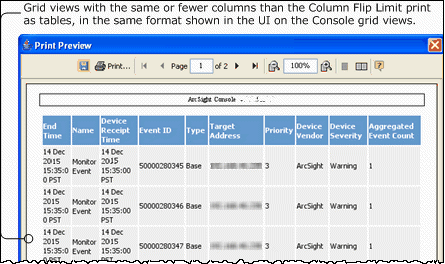

Grid views with the same or fewer columns than the Column Flip Limit print as a table, the same as that shown in the UI on the Console grid view.

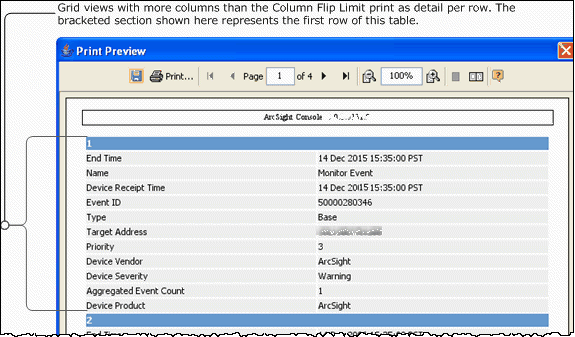

Grid views with more columns than the Column Flip Limit print details per-row rather in a normal table like that shown on the Console grid view.

Instructions for setting the Column Flip Limit for grid views is also summarized in Setting Grid Options for the Viewer Panel.
