Step 1 - Create a Session List to Store Windows Sessions

Purpose: To create a session list that will contain Windows login sessions.

Where: Navigator > Resources > Lists > Session Lists tab

Procedure:

  1. Right-click a user folder and select New Session List. (For more detailed help on creating session lists, see Creating or Editing a Session List.)

  2. Name the session list, and add the fields as shown.

    Session List Attributes

    Value

    Name

    Windows Login Sessions

    Overlapping Entries

    Disabled (leave unchecked)

    This example assumes that the Windows server we are monitoring does not support multiple-user logins, which is why we leave Overlapping Entries unchecked.

    In MemoryCapacity(x1000)

    10 (keep the default)

    Entering data in the Common and Assign sections is optional, depending on how your environment is configured. For information about the Common and Assign attributes sections, as well as the read-only attribute fields in Parent Groups and Creation Information, see Common Resource Attribute Fields.

  3. Add the following three fields with names and types as shown. Set Username as the key-field:

    Field Names for Session Lists

    Type

    Key Fields

    Username

    String

    Enabled

    NT Domain

    String



    Device

    String

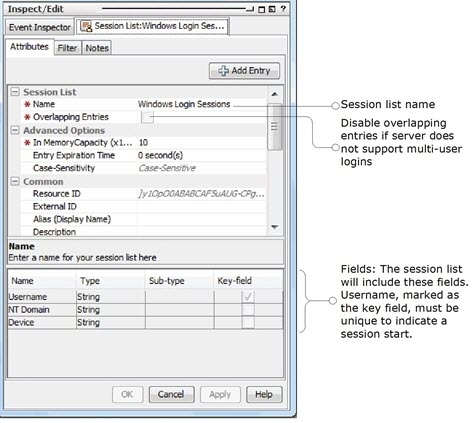

Example session list:
