Selecting Data for the X-Axis on a Chart

If the report template you selected contains a Chart, bind your result data to the chart as described in the following table.

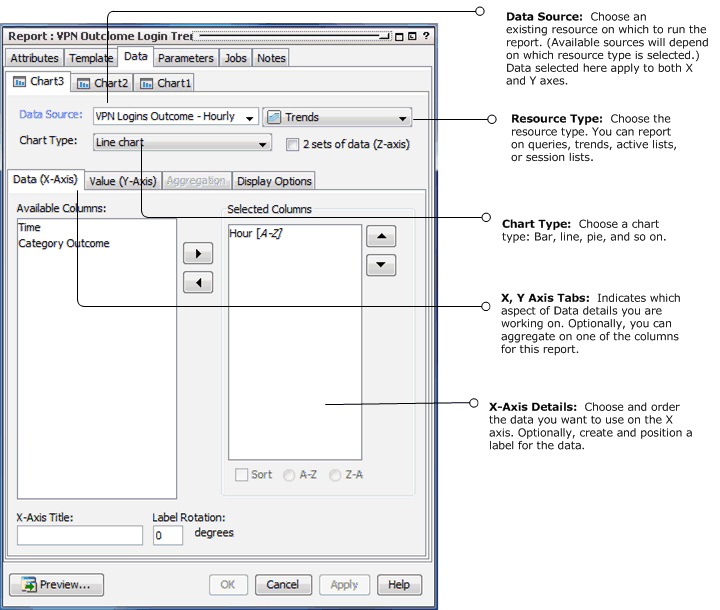

Binding Results to a Chart

X-Axis Data Attribute

Description

Available Columns

Select the data fields from the query you want to show in the X-axis and use the right-hand arrow to move it to the Selected Columns area. The data you select here should be the items you want to count

For example, to build a trend report showing number of events over time, use a trend that captures the number of events per day. Add the end time to the X-axis to represent the day and add the count gathered for that day to the Y-axis. In this case, the X-axis is the data label, and the Y-axis is the count.

Selected Columns

The Selected Columns area shows which data fields you have selected for the X-axis, and provides the opportunity to change the sort order of the data.

Sort

Sort the selected column in ascending or descending order.

To change the sort order, select the column then click the Sort check box. Select A-Z to sort data in ascending order; select Z-A to sort data in descending order.

Note: If you are also plotting a Z-axis (data series) and your output is a bar chart, make sure to set your sorting on the X-axis.

X-Axis Title

Specify a title for the X-axis.

Label Rotation

Select a rotation angle for the by entering a digit between 0 and 90.

Labels refer to the individual X-axis data points, which are automatically derived from the data. The Label Rotation controls the angle of these labels.
