Using the Advanced Selector While Editing Resources

Some resources need a resource attribute. For example, a query viewer needs a query to get data from the database. The Advanced Selector button on the Edit panel of some resources provides options to search for, then select a resource.

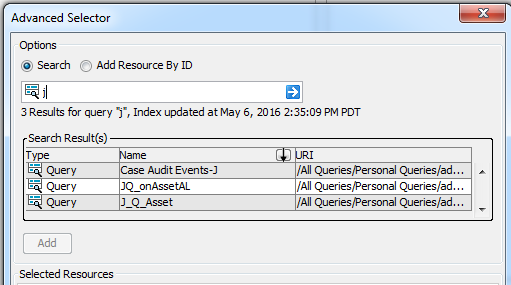

Clicking the button displays the Advanced Selector dialog.

Search is enabled by default.

  1. If you know the resource by name, enter as many characters in the text field to match the resource name. Then click the search button:

    The Search Result(s) panel displays matching resources, if found.

    1. In the Search Result(s) panel, select the resource you want to add and click Add to display it in the Selected Resources panel.

    2. Click OK to add the resource as an attribute.

  1. If you know the resource ID, click:

    1. Enter the resource ID in the text field and press [Enter]. The Search Results panel displays matching resources, if found.

    2. In the Search Result panel, select the resource you want to add and click Add to display it in the Selected Resources panel.

    3. Click OK to add the resource as an attribute in the Edit panel.
