The AccuWork Query Editor

New Query button to create an empty query, AccuWork assigns it a placeholder name ("New Query nnn"). You can edit the name now: click the name once to select it, then press function key F2 (or click it a second time) to begin editing it. Don't double-click — that's equivalent to using the expand/collapse control.

You can change a query's name at any time while Query Editor is still active. Or you can change it later, in the Query List pane.

Creating a Simple Clause

Every query consists at least one simple clause . A simple clause has three parts:

<field-name> <comparison-operator> <value>

The point-and-click interface makes creating a simple clause easy and (almost) foolproof. Start by clicking one of the "Click here to add ..." placeholders in the query:

First, you must select the <field-name> part of the clause from the list-box containing all the field-names. When you select a field-name, the query editor automatically adjusts the <comparison-operator> and <value> parts of the clause, based on the selected field. In the example below, the user has selected field-name productType, whose value must be one of these names: ColorStar, Mixer, Publisher.

The table below shows all the AccuWork data types, along with the corresponding choices for the <comparison-operator> and <value> parts of a simple clause. As you "fill in the blanks" to create simple clauses, you'll notice that AccuWork allocates new "Click here to add ..." placeholders, so that one is always available at each level of the query.


Field Type	Comparison Operator	Value
Text	contains matches does not contain does not match equal to not equal to less than less than or equal to greater than greater than or equal to	Any character string. (Do not enclose it in quotes.) The value is always interpreted as a string literal; there is no way to specify the value of some other field here. The comparison is always a case-insensitive string comparison, never a numeric comparison. For example, the value 3 is greater than the value 25. The contains and does not contain operators perform a simple substring search (case-insensitive), with no pattern matching. The matches and does not match operators perform pattern matching (case-insensitive), using these wildcards: * matches 0 or more characters ? matches any 1 character [aekz] matches a, e, k, or z [a-e] matches a, b, c, d, or e (Note: Don’t mix uppercase and lowercase; neither [E–k] nor [e–K] matches any character] {one,two,seven} matches one, two, or seven \ or / Matches any directory-separator character, even if it’s the "wrong one" for the client machine. For example, src/do_.java matches src\do_something.java on a Windows client. Examples: Rls 4 matches Rls 4 and Rls 4.01, but not Rls 4.2 or Rls 5 Rls [2-5]* matches Rls 2, Rls3.04, and Rls 5.3, but not Rls 1.02 the -? option matches the -X option and the -4 option, but not the -Op option cop{y,ies} matches copy and copies, but not copy(s)
Timespan	equal to not equal to less than less than or equal to greater than greater than or equal to	A numeric value, representing an amount of time. Note: users specify the value in the Issue form as a number of hours (e.g. 7.5); an XML-format dump of the issue record created by Export reports the value as a number of minutes (e.g. 450).
Choose	is is not	One of the strings specified in the definition of this field in the Schema Editor.
List	is is not	One of the strings specified in the definition of a particular named list in the Schema Editor.
User	is is not is member of is not member of	One of the principal-names in the user registry maintained by the AccuRev server. Alternatively, a user-group defined in the registry.
Timestamp	is is not is before is after is before or equal to is after or equal to	An AccuRev timestamp.
Attachments	contains	Any character string. This string is compared to the Name of each of an issue record's attachments. See .
internal	equal to not equal to less than less than or equal to greater than greater than or equal to	An integer, identifying a particular AccuWork issue record ( issueNum field) or a particular AccuRev transaction ( transNum field).

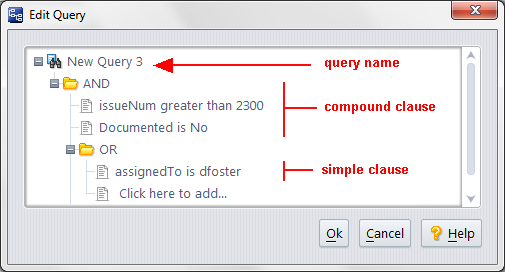

Creating a Compound Clause

A compound clause combines any number of subclauses together, using the same logical operator: AND or OR. (The NOT operator is not supported.) The subclauses to be combined can, themselves, be either simple or compound.

Examples and notes:

Example 1: simple AND simple

Example 2: simple AND compound

Example 3: simple OR compound OR simple

Example 4: Compound clause with a single subclause

A compound clause can contain a single subclause. This is logically equivalent to using the subclause by itself. In fact, the standard "one-line" query contain an AND clause with one simple subclause.

The query editor automatically creates placeholders for simple clauses. But you must explicitly insert a compound-clause placeholder yourself, then fill in the subclauses.

Following are guidelines for adding placeholders to a query:

•

You cannot add a compound clause at the top level (directly beneath the query name). This level contains a single compound clause -- initially AND, but changeable to OR .

•

To create a compound clause below a particular operator, right-click it, and select the type of clause from the context menu.

•

To change any AND clause to an OR clause (or vice-versa), select the operator and press function key F2 (or click it a second time). This opens a listbox with the values AND and OR.

Viewing an English-Language Rendition of the Query

The query name's context menu includes the option In English, which renders the query in everyday language, displaying the results in a separate window.

Ending the Query Editor Session

Whether you're composing a new query or revising an existing one, you end by saving your work (Ok button) or discarding it (Cancel button). If you didn't cancel the Query Editor session, AccuWork automatically executes the query and displays the results in the Query Results pane. Note: Closing the window using its title bar controls is equivalent to Cancel.
