20.2 Architecture of Analytics Dashboard

Analytics Dashboard uses Analytics Server to filter the events that are required for generating graphs. The following diagram displays the architecture of Analytics Dashboard.

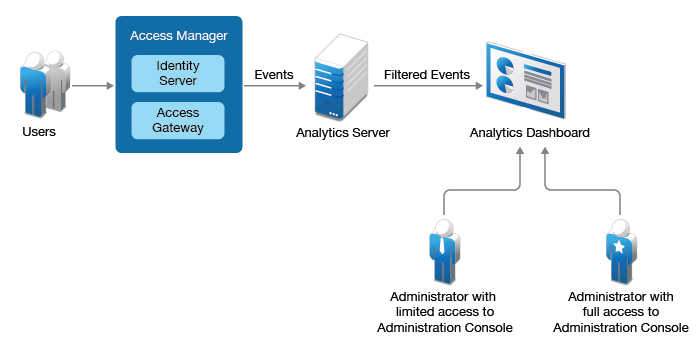

Figure 20-1 Architecture of Analytics Dashboard

Access Manager components generate events based on user access.
